PHILIPS 313-150LXL-T
MFR Part #: 313150LXL-T
SKU #: 1115638
Brand: Signify | Keene
UPC: 624290300567

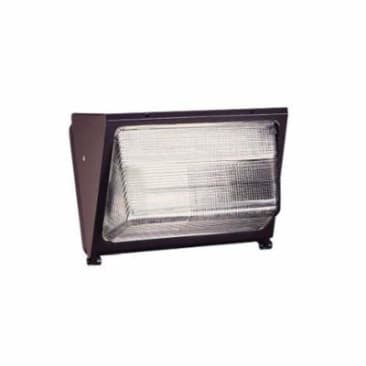

Stonco Keene 313150LXL-T Mini Outdoor Wallcube With Lamp, High Pressure Sodium Lamp, 120/277/347 V AC, Bronze Electrostatic Powder Coated Housing
This product may be subject to ecological fees.
CSA Certified for Wet Location
Product Details
Attributes
Features
Resources
Stonco Keene Outdoor Wallcube, Mini, Series: 313, 120/277/347 V AC, High Pressure Sodium Lamp, 150 W Lamp, Medium Lamp Base, HPF Ballast, Die Cast Aluminum Housing, Bronze Electrostatic Powder Coated Housing, 9.87 in L x 12.5 in W x 7.53 in H
Mounting Type:Wall
Ballast Type:HPF
Dimensions:9.87 in L x 12.5 in W x 7.53 in H
Fixture Finish:Bronze
Fixture Material:Aluminium
Housing Finish:Bronze Electrostatic Powder Coated
Housing Material:Die Cast Aluminum
Lamp Base Type:Medium
Lamp Included:Yes
Lamp Type:High Pressure Sodium
Lamp Wattage:150 W
Number of Lamps:1
Overall Height:7.53 in
Overall Length:9.87 in
Overall Width:12-1/2 in
Series:313, 313 Series
Type:Mini
Voltage Rating:120/277/347 V AC, 120 V, 347 V
- Housing is constructed of die-cast aluminum with deep die-cast fins to provide maximum heat dissipation for the integral ballast components
- Standard finish is a duraplex IITM bronze electrostatic powder coated
- Lens frame is constructed of die-cast aluminum
- Integral hinges allow easy-access for maintenance, secured with safety cable
- Refractor is constructed of heat and shock resistant borosilicate glass which is permanently silicone sealed to the lens frame
- Outside and inside prismatic surfaces have a parting line to provide even light distribution
- Reflector is made of a specular anodized aluminum which is easily removed for installation and maintenance
- Lampholder is a porcelain, 4 kV pulse rated, grip-type medium 313 or mogul based socket which prevents lamp loosening
- ED-17 standard size
Product Details
Stonco Keene Outdoor Wallcube, Mini, Series: 313, 120/277/347 V AC, High Pressure Sodium Lamp, 150 W Lamp, Medium Lamp Base, HPF Ballast, Die Cast Aluminum Housing, Bronze Electrostatic Powder Coated Housing, 9.87 in L x 12.5 in W x 7.53 in H
Attributes
Mounting Type: Wall
Ballast Type: HPF
Dimensions: 9.87 in L x 12.5 in W x 7.53 in H
Fixture Finish: Bronze
Fixture Material: Aluminium
Housing Finish: Bronze Electrostatic Powder Coated
Housing Material: Die Cast Aluminum
Lamp Base Type: Medium
Lamp Included: Yes
Lamp Type: High Pressure Sodium
Lamp Wattage: 150 W
Number of Lamps: 1
Overall Height: 7.53 in
Overall Length: 9.87 in
Overall Width: 12-1/2 in
Series: 313, 313 Series
Type: Mini
Voltage Rating: 120/277/347 V AC, 120 V, 347 V
Features
- Housing is constructed of die-cast aluminum with deep die-cast fins to provide maximum heat dissipation for the integral ballast components
- Standard finish is a duraplex IITM bronze electrostatic powder coated
- Lens frame is constructed of die-cast aluminum
- Integral hinges allow easy-access for maintenance, secured with safety cable
- Refractor is constructed of heat and shock resistant borosilicate glass which is permanently silicone sealed to the lens frame
- Outside and inside prismatic surfaces have a parting line to provide even light distribution
- Reflector is made of a specular anodized aluminum which is easily removed for installation and maintenance
- Lampholder is a porcelain, 4 kV pulse rated, grip-type medium 313 or mogul based socket which prevents lamp loosening
- ED-17 standard size
