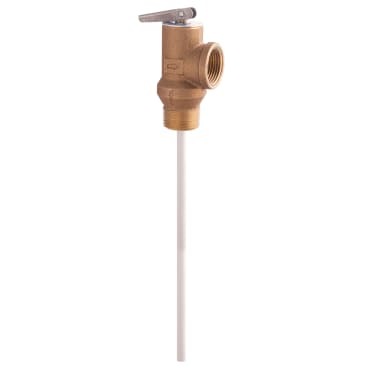

WATTS 0556001 LF100XL8 3/4X8 210F 150PSI TEMPERATURE & PRESSURE VALVE
Product Details
Attributes
Features
Resources
WATTS® Temperature/Pressure Relief Valve, Series: LF100XL, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, Media: Water, Copper Alloy Body
This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating with 8 inch extension, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).
- Features a unique thermostat with special thermo-bonded coating
- Stainless steel spring
- Thermostat is accurate and proven exclusively designed and manufactured by WATTS
- Maximum system operating pressure must not exceed 75% of valve set pressure
- Protects against excessive temperature and pressure during emergency conditions
Product Details
WATTS® Temperature/Pressure Relief Valve, Series: LF100XL, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, Media: Water, Copper Alloy Body
This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating with 8 inch extension, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).
Attributes
Features
- Features a unique thermostat with special thermo-bonded coating
- Stainless steel spring
- Thermostat is accurate and proven exclusively designed and manufactured by WATTS
- Maximum system operating pressure must not exceed 75% of valve set pressure
- Protects against excessive temperature and pressure during emergency conditions
