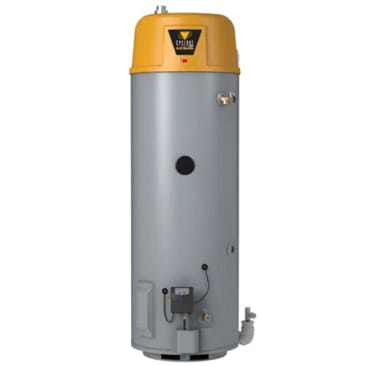

AO SMITH 100283317 BTX-80 50USG 80MBH NATURAL GAS WATER HEATER 0-5300FT
Product Details
Attributes
Features
Resources
AO Smith® Sea Level Condensing Gas Water Heater, 130 Series, 50 gal Capacity, 76000 Btu/hr, 95 gph Recovery Rate, 94 % Efficiency, Power Vent, 5 A, 120 V, 60 Hz, MNPT Connection, 150 psi, Natural Gas Fuel, Hot Surface Silicon Nitride Ignition, 22 in Dia x 68-3/4 in H
The CYCLONE® HE is a light-duty, power vent, fully condensing commercial gas water heater with an internal helical heat exchanger, similar to the design of AO Smith® industry leading CYCLONE® models. This helical heat exchanger helps CYCLONE® HE achieve 94% thermal efficiency and deliver outstanding hot water-output.
- 22 in Dia, combined with 94% efficiency and 76000 Btu input means the CYCLONE® HE can be installed in less space than a larger 75 gal unit with equal or better performance
- Side-mounted hot and cold recirculating taps
- System allows combined vertical and horizontal vent runs using ULC S636 PVC or CPVC pipe
- Intelli-Vent™ gas control with silicon nitride hot surface igniter
- Premium-grade hot surface ignitor eliminates standing pilot
- Electronic circuitry provides superior system diagnostics capabilities plus extremely precise temperature control
- Temperature control up to 181 deg F
- Power vent design for installation versatility
- Modular blower, with 6 ft cord and standard three prong connector
- Combined horizontal and vertical vent runs terminating through an outside wall, using SCH 40 PVC, CPVC or polypropylene pipe
- Canadian installations require ULC S636 approved pipe for venting, 2 in pipe allows vent runs up to 25 equivalent feet, 3 in pipe allows vent runs up to 65 equivalent feet, 4 in pipe allows vent runs up to 128 equivalent feet
- Green Choice® gas burner, patented eco friendly burner design reduces NOx emissions by up to 33% and complies with low NOx emission requirements of less than 40 ng/J
- Blue Diamond® glass coating with two heavy-duty anode rods provides superior corrosion resistance compared to industry standard glass lining
- DynaClean™ diffuser dip tube
- CSA certified and ASME-rated T&P relief valve
- Not recommended for sanitation rinse
Product Details
AO Smith® Sea Level Condensing Gas Water Heater, 130 Series, 50 gal Capacity, 76000 Btu/hr, 95 gph Recovery Rate, 94 % Efficiency, Power Vent, 5 A, 120 V, 60 Hz, MNPT Connection, 150 psi, Natural Gas Fuel, Hot Surface Silicon Nitride Ignition, 22 in Dia x 68-3/4 in H
The CYCLONE® HE is a light-duty, power vent, fully condensing commercial gas water heater with an internal helical heat exchanger, similar to the design of AO Smith® industry leading CYCLONE® models. This helical heat exchanger helps CYCLONE® HE achieve 94% thermal efficiency and deliver outstanding hot water-output.
Attributes
Features
- 22 in Dia, combined with 94% efficiency and 76000 Btu input means the CYCLONE® HE can be installed in less space than a larger 75 gal unit with equal or better performance
- Side-mounted hot and cold recirculating taps
- System allows combined vertical and horizontal vent runs using ULC S636 PVC or CPVC pipe
- Intelli-Vent™ gas control with silicon nitride hot surface igniter
- Premium-grade hot surface ignitor eliminates standing pilot
- Electronic circuitry provides superior system diagnostics capabilities plus extremely precise temperature control
- Temperature control up to 181 deg F
- Power vent design for installation versatility
- Modular blower, with 6 ft cord and standard three prong connector
- Combined horizontal and vertical vent runs terminating through an outside wall, using SCH 40 PVC, CPVC or polypropylene pipe
- Canadian installations require ULC S636 approved pipe for venting, 2 in pipe allows vent runs up to 25 equivalent feet, 3 in pipe allows vent runs up to 65 equivalent feet, 4 in pipe allows vent runs up to 128 equivalent feet
- Green Choice® gas burner, patented eco friendly burner design reduces NOx emissions by up to 33% and complies with low NOx emission requirements of less than 40 ng/J
- Blue Diamond® glass coating with two heavy-duty anode rods provides superior corrosion resistance compared to industry standard glass lining
- DynaClean™ diffuser dip tube
- CSA certified and ASME-rated T&P relief valve
- Not recommended for sanitation rinse
