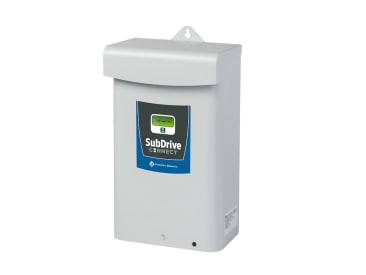

LITTLE GIANT 5870205313C SUBDRIVE 20 NEMA3R 1/2 - 2HP
MFR Part #: 5870205313C
SKU #: 1122249
Brand: Franklin Electric
UPC: 400007821484
Franklin Electric 5870205313C 1-Phase Drive, 230 V AC, 13.2 A, 2 hp
12 Months from Date of Install, 24 Months from Date of Manufacturing
Pressure Transducer
ANSI/NSF Standard 61 | cUL Listed / UL Listed
Product Details
Attributes
Features
Resources
Franklin Electric, 5870205313C, Drive, 1-Phase, 230 V AC, 13.2 A, 2 hp, Type 3R Enclosure
Horsepower:2 hp
Type:1-Phase
Voltage Rating:230 V AC
Additional Information:20 to 95% Humidity, 5 to 4200 W Power Rating, -13 to 122 deg F Temperature Rating
Amperage Rating:13.2 A
Dimensions:9-3/4 in L x 19-3/4 in W x 5-1/4 in H
Enclosure Type:Type 3R, NEMA 3R
Input Current:19 A
Input Voltage:208/230 VAC
Motor Output:5 hp
Output Frequency:50/60 Hz
Phase:1 ph
- Provides consistent water pressure across a system, eliminating fluctuations
- Soft start maximizes system life
- Advanced filtering to remove radio frequency interference
- Power Factor Correction that optimizes the system for a wider performance range
- Underload (Dry-run) with customizable sensitivity and off time
- Overload / Locked pump
- Output short circuit and open circuit
- Electrical surge
- Overheated controller
- Moisture sensor input
- Run and fault relays
- The easy-to-install platform uses an array of setup, local monitoring, and assisted troubleshooting solutions to help you save time during installation and servicing
- LCD display provides immediate feedback and read-outs on pressure and system status
- No programming is required with easy DIP switches for basic drive configuration
- Integrated connectivity and compatibility with our FE Connect mobile app for real-time data and monitoring; access to advanced features such as motor frequency range, lead/lag/alternation, broken pipe detection, and fault log retrieval
- Ideal for new construction or retrofitting and optimizing submersible and surface systems from 1/2 - 5 hp
- Built-in lead/lag and alternation capability for duplex systems
- Comes standard with various input/output (I/O) ports for streamlined compatibility with adjacent systems
- Compact design, that is ideal for wall-mounting, works with small pressure tanks or existing larger tanks
- Comes fully supported by the industry-leading technical support professionals and field service engineers
Product Details
Franklin Electric, 5870205313C, Drive, 1-Phase, 230 V AC, 13.2 A, 2 hp, Type 3R Enclosure
Attributes
Horsepower: 2 hp
Type: 1-Phase
Voltage Rating: 230 V AC
Additional Information: 20 to 95% Humidity, 5 to 4200 W Power Rating, -13 to 122 deg F Temperature Rating
Amperage Rating: 13.2 A
Dimensions: 9-3/4 in L x 19-3/4 in W x 5-1/4 in H
Enclosure Type: Type 3R, NEMA 3R
Input Current: 19 A
Input Voltage: 208/230 VAC
Motor Output: 5 hp
Output Frequency: 50/60 Hz
Phase: 1 ph
Features
- Provides consistent water pressure across a system, eliminating fluctuations
- Soft start maximizes system life
- Advanced filtering to remove radio frequency interference
- Power Factor Correction that optimizes the system for a wider performance range
- Underload (Dry-run) with customizable sensitivity and off time
- Overload / Locked pump
- Output short circuit and open circuit
- Electrical surge
- Overheated controller
- Moisture sensor input
- Run and fault relays
- The easy-to-install platform uses an array of setup, local monitoring, and assisted troubleshooting solutions to help you save time during installation and servicing
- LCD display provides immediate feedback and read-outs on pressure and system status
- No programming is required with easy DIP switches for basic drive configuration
- Integrated connectivity and compatibility with our FE Connect mobile app for real-time data and monitoring; access to advanced features such as motor frequency range, lead/lag/alternation, broken pipe detection, and fault log retrieval
- Ideal for new construction or retrofitting and optimizing submersible and surface systems from 1/2 - 5 hp
- Built-in lead/lag and alternation capability for duplex systems
- Comes standard with various input/output (I/O) ports for streamlined compatibility with adjacent systems
- Compact design, that is ideal for wall-mounting, works with small pressure tanks or existing larger tanks
- Comes fully supported by the industry-leading technical support professionals and field service engineers
