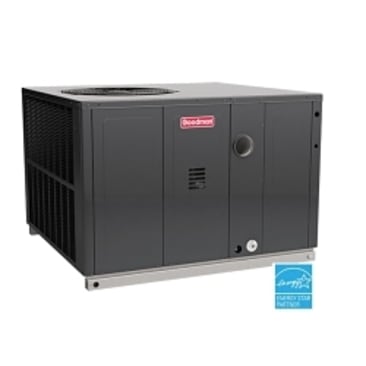

GOODMAN GPG1642100M41 3.5T PKG GAS 16 SEER 100K 1 PH
MFR Part #: GPG1642100M41
SKU #: 1219409
Brand: Goodman®
UPC: 978872
Goodman® GPG1642100M41 GPG16M Self-Contained Gas/Electric Packaged Unit, 3.5 ton Nominal, 78000 Btu/hr Heating, 81 % AFUE, 208/230 VAC, 1 ph, 12 EER, Multi-Position Air Flow
Limited
AHRI Certified | cETLus Listed
Product Details
Attributes
Features
Resources
Goodman® Gas/Electric Packaged Unit, Self-Contained, Series: GPG16M, 3.5 ton Nominal Capacity, 40000 Btu/hr Cooling, 78000 Btu/hr Heating, 208/230 VAC, 1, 60 Hz, 81 % AFUE, 12 EER, 16 SEER, Yes Low NOX, R-410A, Multi-Position, 100000 Btu/hr Heat Input, 1250 cfm Evaporator/3200 cfm Condenser, 1/4 hp Condenser and 3/4 hp Blower Motor, 1075 rpm Condenser and 1050 rpm Blower, Steel, 47 in W x 51 in D x 42-3/4 in H
AFUE Rating:
81 %
Air Flow Type:
Multi-Position
Cooling Capacity:
40000 Btu/hr
Dimensions:
47 in W x 51 in D x 42-3/4 in H
EER Rating:
12
Flow Rate:
1250 cfm Evaporator/3200 cfm Condenser
Frequency Rating:
60 Hz
Heat Input:
100000 Btu/hr
Heating Capacity:
78000 Btu/hr
Low NOX:
Yes
Material:
Steel
Motor HP:
1/4 hp Condenser and 3/4 hp Blower
Motor RPM:
1075 rpm Condenser and 1050 rpm Blower
Nominal Capacity:
3.5 ton
Number of Phases:
1
Refrigerant Type:
R-410A
SEER Rating:
16
Series:
GPG16M
Type:
Self-Contained
Voltage Rating:
208/230 VAC
- High efficiency compressor
- Aluminized steel tubular heat exchanger
- All aluminum evaporator coil
- Multi-speed ECM indoor blower motor
- Refrigeration grade premium copper tubing and aluminum fin condenser coil configuration
- Heavy gauge galvanized steel enclosure with powder paint finish
- Fully insulated blower compartment
- Durable, corrosion resistant: T-140 aluminized steel tubular heat exchanger
- Copper tube/aluminum fin condenser coil
- All aluminum evaporator coil on 2 to 4 ton units
- Power assisted combustion
- Loss of charged protection & high pressure switch
- Two stage gas valve
- Natural gas with easy conversion to propane
- Direct sparks ignition system includes a microprocessor based controls for the entire ignition sequence
- All blower operation and all safety circuits complete with self diagnostics
- All models comply with California low NOx emission standards
- Fully insulated heavy gauge, zinc coated steel cabinet with UV resistant: powder paint finish
- Horizontal or downflow application
- One roof curb fits all units
Product Details
Goodman® Gas/Electric Packaged Unit, Self-Contained, Series: GPG16M, 3.5 ton Nominal Capacity, 40000 Btu/hr Cooling, 78000 Btu/hr Heating, 208/230 VAC, 1, 60 Hz, 81 % AFUE, 12 EER, 16 SEER, Yes Low NOX, R-410A, Multi-Position, 100000 Btu/hr Heat Input, 1250 cfm Evaporator/3200 cfm Condenser, 1/4 hp Condenser and 3/4 hp Blower Motor, 1075 rpm Condenser and 1050 rpm Blower, Steel, 47 in W x 51 in D x 42-3/4 in H
Attributes
AFUE Rating: 81 %
Air Flow Type: Multi-Position
Cooling Capacity: 40000 Btu/hr
Dimensions: 47 in W x 51 in D x 42-3/4 in H
EER Rating: 12
Flow Rate: 1250 cfm Evaporator/3200 cfm Condenser
Frequency Rating: 60 Hz
Heat Input: 100000 Btu/hr
Heating Capacity: 78000 Btu/hr
Low NOX: Yes
Material: Steel
Motor HP: 1/4 hp Condenser and 3/4 hp Blower
Motor RPM: 1075 rpm Condenser and 1050 rpm Blower
Nominal Capacity: 3.5 ton
Number of Phases: 1
Refrigerant Type: R-410A
SEER Rating: 16
Series: GPG16M
Type: Self-Contained
Voltage Rating: 208/230 VAC
Features
- High efficiency compressor
- Aluminized steel tubular heat exchanger
- All aluminum evaporator coil
- Multi-speed ECM indoor blower motor
- Refrigeration grade premium copper tubing and aluminum fin condenser coil configuration
- Heavy gauge galvanized steel enclosure with powder paint finish
- Fully insulated blower compartment
- Durable, corrosion resistant: T-140 aluminized steel tubular heat exchanger
- Copper tube/aluminum fin condenser coil
- All aluminum evaporator coil on 2 to 4 ton units
- Power assisted combustion
- Loss of charged protection & high pressure switch
- Two stage gas valve
- Natural gas with easy conversion to propane
- Direct sparks ignition system includes a microprocessor based controls for the entire ignition sequence
- All blower operation and all safety circuits complete with self diagnostics
- All models comply with California low NOx emission standards
- Fully insulated heavy gauge, zinc coated steel cabinet with UV resistant: powder paint finish
- Horizontal or downflow application
- One roof curb fits all units
