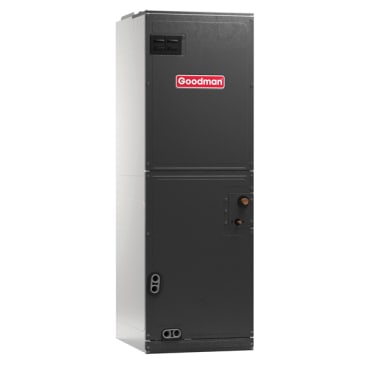

AIR HANDLER 45INH X17.5INW X21IND GOODMAN ASPT24B14
MFR Part #: ASPT24B14
SKU #: 1219505
Brand: Goodman®
UPC: 978968
Amana® ASPT24B14 Air Handler, 24000 Btu/hr Cooling BTU, 208 to 240 VAC, 3 A Minimum Circuit, 3/4 hp, 60 Hz
10 Year Limited Parts
AHRI Certified, C/US ETL Intertek Listed
Product Details
Attributes
Features
Resources
Amana® Air Handler, Series: ASPT, 2 ton Nominal Capacity, 24000 Btu/hr Cooling, 208 to 240 VAC, 3 A Minimum Circuit, 3/4 hp, 60 Hz, 1 ph, Multi-Position, 13 SEER, FPT Connection, R-410A Refrigerant, 15 A Fuse Rating, Galvanized/Leather Grain-Embossed/Painted, 45 in H x 17-1/2 in W x 21 in D
Amperage Rating:3 A Minimum Circuit
BTU Rating:24000 Btu/hr Cooling
Connection Type:FPT
Dimensions:45 in H x 17-1/2 in W x 21 in D
Finish:Galvanized/Leather Grain-Embossed/Painted
Frequency Rating:60 Hz
HP Rating:3/4 hp
Phase:1 ph
Series:ASPT
Voltage Rating:208 to 240 VAC
Configuration:Multi-Position
Fuse Rating:15 A
Nominal Capacity:2 ton
Refrigerant Type:R-410A
SEER Rating:13
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Direct-drive, multi-speed ECM blower motor
- All aluminum evaporator coils
- Coil mounting track for quick repositioning
- Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 1/2 in H2O when tested in accordance with ASHRAE standard 193
- Rigid SmartFrame cabinet
- 21 in D for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Glue-less cabinet insulation retention
- Tool-less filter access
- Multi-position EEM motor
- 6 in W x 9-1/2 in Dia blower
Product Details
Amana® Air Handler, Series: ASPT, 2 ton Nominal Capacity, 24000 Btu/hr Cooling, 208 to 240 VAC, 3 A Minimum Circuit, 3/4 hp, 60 Hz, 1 ph, Multi-Position, 13 SEER, FPT Connection, R-410A Refrigerant, 15 A Fuse Rating, Galvanized/Leather Grain-Embossed/Painted, 45 in H x 17-1/2 in W x 21 in D
Attributes
Amperage Rating: 3 A Minimum Circuit
BTU Rating: 24000 Btu/hr Cooling
Connection Type: FPT
Dimensions: 45 in H x 17-1/2 in W x 21 in D
Finish: Galvanized/Leather Grain-Embossed/Painted
Frequency Rating: 60 Hz
HP Rating: 3/4 hp
Phase: 1 ph
Series: ASPT
Voltage Rating: 208 to 240 VAC
Configuration: Multi-Position
Fuse Rating: 15 A
Nominal Capacity: 2 ton
Refrigerant Type: R-410A
SEER Rating: 13
Features
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Direct-drive, multi-speed ECM blower motor
- All aluminum evaporator coils
- Coil mounting track for quick repositioning
- Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 1/2 in H2O when tested in accordance with ASHRAE standard 193
- Rigid SmartFrame cabinet
- 21 in D for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Glue-less cabinet insulation retention
- Tool-less filter access
- Multi-position EEM motor
- 6 in W x 9-1/2 in Dia blower
