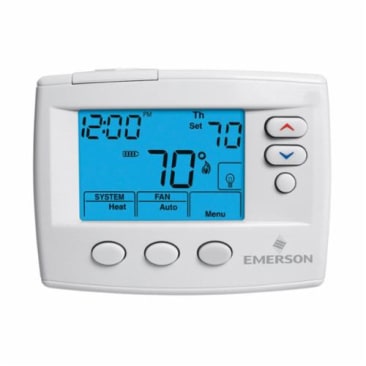

WHITE RODGERS 1F80-0471 Image 1

PROGRAMMABLE DIGITAL THERMOSTAT WHITE RODGERS 1F80-0471

MFR Part #: 1F80-0471
SKU #: 1058384
Brand: White-Rodgers™
UPC: 786710527494
White-Rodgers™ Blue™ 1F80-0471 Thermostat, Digital, Programmable Thermostat, 45 to 99 deg F Control, 7 or 5-1-1 or 5-2 Days Programs per Week, RC, RH, C, W, Y, O/B Terminal, Import
5 Years
F61-2634 Wall Plate
NEC Class II

White-Rodgers™ Blue™ Thermostat, Digital, Programmable Thermostat, 45 to 99 deg F Control, RC, RH, C, W, Y, O/B Terminal Designations, Heat/Cool/Off System Switching, Auto Fan Switching, 2 Stage, 1 Stages Heat, 1 Stages Cool, 7 or 5-1-1 or 5-2 Days Programs per Week, 4 sq-in Lighted Display, 20 to 30 V AC, Battery/Hardwired Power Source, White, 4-7/16 in W x 1-1/4 in D x 3-7/16 in H, Import

Product Details

White-Rodgers™ Blue™ Thermostat, Digital, Programmable Thermostat, 45 to 99 deg F Control, RC, RH, C, W, Y, O/B Terminal Designations, Heat/Cool/Off System Switching, Auto Fan Switching, 2 Stage, 1 Stages Heat, 1 Stages Cool, 7 or 5-1-1 or 5-2 Days Programs per Week, 4 sq-in Lighted Display, 20 to 30 V AC, Battery/Hardwired Power Source, White, 4-7/16 in W x 1-1/4 in D x 3-7/16 in H, Import

Attributes

Color: White
Control Range: 45 to 99 deg F
Dimensions: 4-7/16 in W x 1-1/4 in D x 3-7/16 in H
Display Type: 4 sq-in Lighted
Domestic/Import: Import
Fan Switching: Auto
Number of Stages: 2
Power Source: Battery/Hardwired
Programs per Week: 7 or 5-1-1 or 5-2 Days
Stages Cool: 1
Stages Heat: 1
System Switching: Heat/Cool/Off
Terminal Designations: RC, RH, C, W, Y, O/B
Thermostat Type: Digital, Programmable
Voltage Rating: 20 to 30 V AC

Features

  • Gas, oils, electric, mV and 2 or 3 wires zone compatible
  • Automatic heat or cool changeover options
  • Keypad lockout and set point temperature limits options
  • Hardwired and/or battery powered
  • Fit vertical or horizontal junction box
  • Air filter change indicators options
  • 0.4 deg F fast, 0.6 deg F medium and 1.7 deg F slow heat differentials
  • 1.2 deg F fast and 1.7 deg F slow cool differentials
  • 1.2 deg F fast and 1.7 deg F slow heat pumps differentials
  • 3 wires zone valves
  • Millivolt compatible
  • For gas oils, electric and heat pumps application
  • 1 mV to 30 VAC/DC
