1IN SWT MIXING VALVE W/CHECK CONBRACO 34A-215-S
Product Details
Attributes
Features
Resources

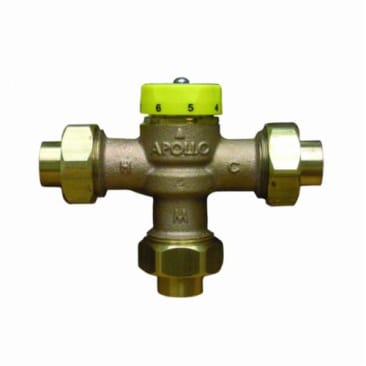

Apollo™, 34A-215-S, Master Mixing Valve, Thermostatic, Series: 34A, 1 in Nominal, 150 psig Pressure, 210 deg F, 0.5 gpm Flow, Media: Water, Bronze Body, Chloramine Resistant EPDM O-Ring Softgoods, Domestic
Apollo® MVA thermostatic master mixing valves are designed for "point of source" ASSE 1017 approved applications. They provide reliable hot water temperature control of potable and non-potable hot water distribution systems. Models can be configured with several connection options to suit your application.
- Superior thermostatic element technology for optimum performance, reliability and accuracy
- Integral inlet strainers and check valves to protect against cross-flow and foreign particles in the piping system
- Thermostat over-temperature protection
- Tamper resistant maximum temperature calibration option
- Fingertip temperature control
- Meets the requirements of the EPA safe drinking water act
- Instantaneous cold or hot water supply failure shut-off protection
- Multiple connection options to fit your specific needs
- Noryl™ modified PPO (polyphenylene oxide) shuttle
- Copper/wax filled sensor
- 39 to 80 deg F (4 to 27 deg C) cold water inlet
- 120 to 180 deg F (49 to 82 deg C) hot water inlet
- Flow rate at 30 psig (138 kPa) - 19 gpm (64 lpm)
- 85 to 140 deg F adjustment setting
Product Details
Apollo™, 34A-215-S, Master Mixing Valve, Thermostatic, Series: 34A, 1 in Nominal, 150 psig Pressure, 210 deg F, 0.5 gpm Flow, Media: Water, Bronze Body, Chloramine Resistant EPDM O-Ring Softgoods, Domestic
Apollo® MVA thermostatic master mixing valves are designed for "point of source" ASSE 1017 approved applications. They provide reliable hot water temperature control of potable and non-potable hot water distribution systems. Models can be configured with several connection options to suit your application.
Attributes
Features
- Superior thermostatic element technology for optimum performance, reliability and accuracy
- Integral inlet strainers and check valves to protect against cross-flow and foreign particles in the piping system
- Thermostat over-temperature protection
- Tamper resistant maximum temperature calibration option
- Fingertip temperature control
- Meets the requirements of the EPA safe drinking water act
- Instantaneous cold or hot water supply failure shut-off protection
- Multiple connection options to fit your specific needs
- Noryl™ modified PPO (polyphenylene oxide) shuttle
- Copper/wax filled sensor
- 39 to 80 deg F (4 to 27 deg C) cold water inlet
- 120 to 180 deg F (49 to 82 deg C) hot water inlet
- Flow rate at 30 psig (138 kPa) - 19 gpm (64 lpm)
- 85 to 140 deg F adjustment setting
