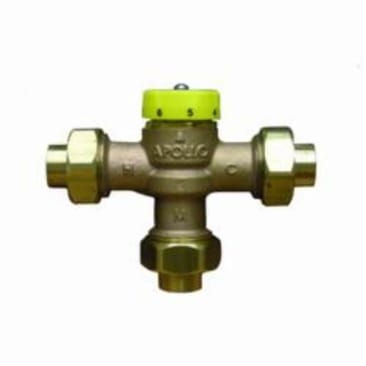

3/4IN HIGH TEMP MIXING VALVE NPT CONBRACO 34A-214-HT
Product Details
Attributes
Features
Resources
Apollo™, 34A-214-HT, Thermostatic Mixing Valve, Hydronic Master, Series: 34A-H, 3/4 in Nominal, FNPT End Style, 150 psig Pressure, 210 deg F, 0.5 gpm Flow, Media: Water, Bronze Body, Chloramine Resistant EPDM O-Ring Softgoods, Domestic
The Apollo® MVA-H master mixing valves are designed for hydronic applications. They provide accurate temperature control in hot water heating distribution systems where the service temperatures are outside the scope of ASSE standards. Valves are available with multiple connection options to suit your application.
- Superior thermostatic element technology for optimum performance, reliability and accuracy
- Dezincification resistant bronze body
- Thermostat over-temperature protection
- Integral stainless steel inlet strainers
- Fingertip temperature control
- Instantaneous cold or hot water supply failure shut-off protection
- Multiple connection options to fit your specific needs
- Stainless steel spring
- Union fitting may be placed on any inlet or outlet
- Integrated inlet checks
- High flow capacity
- Broad temperature range
- Cold water failure protection
- 20 mesh screens on both inlets
- 39 to 80 deg F (4 to 27 deg C) cold water inlet
- 120 to 200 deg F (49 to 82 deg C) hot water inlet
- 130 to 180 deg F (54 to 82 deg C) mixed water
- 120 to 180 deg F setting
Product Details
Apollo™, 34A-214-HT, Thermostatic Mixing Valve, Hydronic Master, Series: 34A-H, 3/4 in Nominal, FNPT End Style, 150 psig Pressure, 210 deg F, 0.5 gpm Flow, Media: Water, Bronze Body, Chloramine Resistant EPDM O-Ring Softgoods, Domestic
The Apollo® MVA-H master mixing valves are designed for hydronic applications. They provide accurate temperature control in hot water heating distribution systems where the service temperatures are outside the scope of ASSE standards. Valves are available with multiple connection options to suit your application.
Attributes
Features
- Superior thermostatic element technology for optimum performance, reliability and accuracy
- Dezincification resistant bronze body
- Thermostat over-temperature protection
- Integral stainless steel inlet strainers
- Fingertip temperature control
- Instantaneous cold or hot water supply failure shut-off protection
- Multiple connection options to fit your specific needs
- Stainless steel spring
- Union fitting may be placed on any inlet or outlet
- Integrated inlet checks
- High flow capacity
- Broad temperature range
- Cold water failure protection
- 20 mesh screens on both inlets
- 39 to 80 deg F (4 to 27 deg C) cold water inlet
- 120 to 200 deg F (49 to 82 deg C) hot water inlet
- 130 to 180 deg F (54 to 82 deg C) mixed water
- 120 to 180 deg F setting
