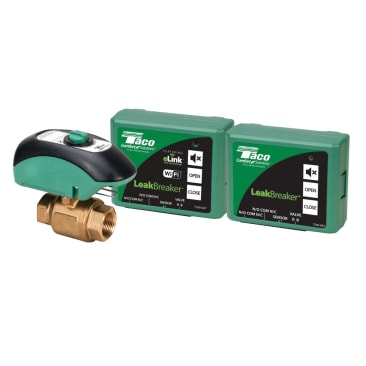

TACO LB-075-H-2LF Image 1

TACO LB-075-H-2LF LEAKBREAKER 3/4 IP WATER HEATER SHUT-OFF VALVE

MFR Part #: LB-075-H-2LF
SKU #: 1285891
Brand: Taco® Comfort Solutions™
UPC: 195445643339
Taco Comfort Solutions® LeakBreaker® LB-075-H-2LF Water Heater Shut-Off, NPT, Brass, 135 deg F, 140 psi
Limited
Water Heater Leak Detection and Water Shut-Off Applications
NSF/ANSI/CAN 61/372

Taco Comfort Solutions® LeakBreaker® Water Heater Shut-Off, 3/4 in Connection, NPT Connection, 32 Cv Flow Coefficient (Cv), 140 psi, Full Port, PTFE Seat, FKM Seal, Brass/PTFE Trim, FKM Softgoods, Brass, 135 deg F, 4-7/8 in L x 4-3/8 in H, Additional Information: 125 psi Shut-Off Pressure, 300 psi Static Pressure, 3-3/16 in H x 1-5/8 in W x 4 in D LeakBreaker® Module, Potable Water Service, Engineered Polymer Actuator and Control Panel

LeakBreaker ® is a water heater leak protection device that protects against flood damage from the containment failure of a water heater. It consists of a control unit, a valve with actuator and a sensor. This re-settable, testable protection device can be installed on any style water heater to shut off the incoming water supply, preventing additional water flow to a damaged water heater. The two-color LED light and audible alarm lets you know the status of LeakBreaker ® at all times. LeakBreaker featuring eLink ® uses Wi-Fi ® to communicate with the cloud, enabling status alerts to be sent directly to the users whenever a change occurs. Notifications are sent via email or text. Alarms will be sent when the device detects status changes for the following: alarm activation, AC or battery power, sensor and valve connection, and module connectivity. Wi-Fi ® is a registered trademark of the Wi-Fi Alliance ®.

Product Details

Taco Comfort Solutions® LeakBreaker® Water Heater Shut-Off, 3/4 in Connection, NPT Connection, 32 Cv Flow Coefficient (Cv), 140 psi, Full Port, PTFE Seat, FKM Seal, Brass/PTFE Trim, FKM Softgoods, Brass, 135 deg F, 4-7/8 in L x 4-3/8 in H, Additional Information: 125 psi Shut-Off Pressure, 300 psi Static Pressure, 3-3/16 in H x 1-5/8 in W x 4 in D LeakBreaker® Module, Potable Water Service, Engineered Polymer Actuator and Control Panel

LeakBreaker ® is a water heater leak protection device that protects against flood damage from the containment failure of a water heater. It consists of a control unit, a valve with actuator and a sensor. This re-settable, testable protection device can be installed on any style water heater to shut off the incoming water supply, preventing additional water flow to a damaged water heater. The two-color LED light and audible alarm lets you know the status of LeakBreaker ® at all times. LeakBreaker featuring eLink ® uses Wi-Fi ® to communicate with the cloud, enabling status alerts to be sent directly to the users whenever a change occurs. Notifications are sent via email or text. Alarms will be sent when the device detects status changes for the following: alarm activation, AC or battery power, sensor and valve connection, and module connectivity. Wi-Fi ® is a registered trademark of the Wi-Fi Alliance ®.

Attributes

Additional Information125 psi Shut-Off Pressure, 300 psi Static Pressure, 3-3/16 in H x 1-5/8 in W x 4 in D LeakBreaker® Module, Potable Water Service, Engineered Polymer Actuator and Control Panel
Connection Size3/4 in
Connection TypeNPT
Dimensions4-7/8 in L x 4-3/8 in H
Flow Coefficient (Cv)32 Cv
MaterialBrass
Port TypeFull
Pressure Rating140 psi
Seal MaterialFKM
Seat MaterialPTFE
Softgoods MaterialFKM
Temperature Rating135 deg F
Trim MaterialBrass/PTFE

Features

  • eLink® Sends Text or Email Alerts
  • Re-Settable Testable
  • Quick Connect Wiring
  • Operates on Batteries or Power Supply (LeakBreaker)
  • Operates on Power Supply with Battery Backup (LeakBreaker feat. eLink)
  • Multi-color LED Status Light
  • Audible Alarm
  • Alarm Mute
  • 2 N/O; N/C Dry Contacts
  • Full Port Valve
  • Easy Removable Actuator
