KANE KANE515 TRMS 1000V DIGITAL MULTIMETER WITH TEMP
Product Details
Attributes
Features
Resources
UEi Test Instruments™ Digital Multimeter, True RMS, 1000 VAC/VDC, 10 A AC/DC, 40 MOhm Resistance, Safety Rating: CAT III 600 V/CAT II 1000 V, 9999 uF Capacitance, +/-1% +3 Digits, +/-2% +3 Digits, +/-0.5% +3 Digits, +/-1.5% +5 Digits, +/-1.2% +5 Digits, +/-0.8% +5 Digits, +/-1.5% +5 Digits, +/-3% +5 Digits, +/-1.5% +3.6 deg F, +/-1.5% +3 deg F Accuracy, 500 Hz Bandwidth, 0.1 mV to 1 V, 0.001 to 0.01 A, 0.1 Ohm to 0.001 MOhm, 0.01 MOhm, 0.01 nF to 1 uF, 0.1 deg F, 1 deg F Resolution, Backlit Display, AA Battery, Yes Diode Test, 6.49 x 3.3 x 2.17 in Dimensions, -328 to 2462 deg F, IP42 Enclosure

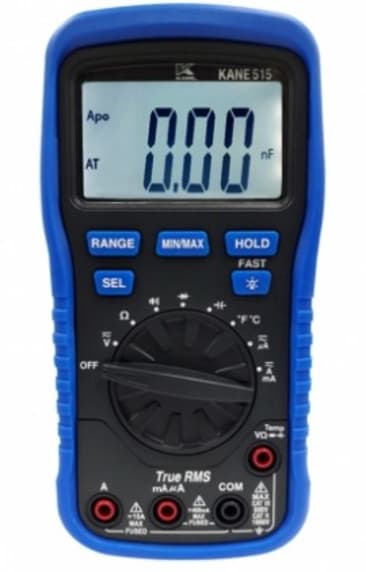

The DM515 is a 1000V AC/DC multimeter with resistance, diode test, audible continuity, min/max, Fast min/max, capacitance, fused test lead inputs, amps, microamps, milliamps, temperature and a protective rubber boot with a kick stand. It also features auto ranging, test lead holders and is backed by a 2-year limited warranty
- Micro/milli amps
- Micro/milli volts
- Continuity
- 1 ms fast response min/max
- Fused test lead inputs
- Auto/manual ranging
- High resolution backlit display
- Min/max
- Auto selection
- Magnetic mount
- Accuracy - +/-1% +3 digits 45 to 500 Hz, +/-2% +3 digits 500 to 1 kHz at 6 mV to 1000 VAC, +/-0.5% +3 digits at 6 mV to 1000 VDC, +/-1.5% +5 digits at 6 to 10 A AC, +/-1.2% +5 digits at 6 to 10 A DC, +/-0.8% +5 digits at 600 Ohm to 6 MOhm, +/-1.5% +5 digits at 40 MOhm, +/-3% +5 digits at 10 nF to 9999 uF, +/-1.5% +3.6 deg F at -328 to 999 deg F, +/-1.5% +3 deg F at 1000 to 2462 deg F
- Resolution - 0.1 mV to 1 V at 6 mV to 1000 VAC/VDC, 0.001 to 0.01 A at 6 to 10 A AC/DC, 0.1 Ohm to 0.001 MOhm at 600 Ohm to 6 MOhm, 0.01 MOhm at 40 MOhm, 0.01 nF to 1 uF at 10 nF to 9999 uF, 0.1 deg F at -328 to 999 deg F, 1 deg F at 1000 to 2462 deg F
Product Details
UEi Test Instruments™ Digital Multimeter, True RMS, 1000 VAC/VDC, 10 A AC/DC, 40 MOhm Resistance, Safety Rating: CAT III 600 V/CAT II 1000 V, 9999 uF Capacitance, +/-1% +3 Digits, +/-2% +3 Digits, +/-0.5% +3 Digits, +/-1.5% +5 Digits, +/-1.2% +5 Digits, +/-0.8% +5 Digits, +/-1.5% +5 Digits, +/-3% +5 Digits, +/-1.5% +3.6 deg F, +/-1.5% +3 deg F Accuracy, 500 Hz Bandwidth, 0.1 mV to 1 V, 0.001 to 0.01 A, 0.1 Ohm to 0.001 MOhm, 0.01 MOhm, 0.01 nF to 1 uF, 0.1 deg F, 1 deg F Resolution, Backlit Display, AA Battery, Yes Diode Test, 6.49 x 3.3 x 2.17 in Dimensions, -328 to 2462 deg F, IP42 Enclosure
The DM515 is a 1000V AC/DC multimeter with resistance, diode test, audible continuity, min/max, Fast min/max, capacitance, fused test lead inputs, amps, microamps, milliamps, temperature and a protective rubber boot with a kick stand. It also features auto ranging, test lead holders and is backed by a 2-year limited warranty
Attributes
Features
- Micro/milli amps
- Micro/milli volts
- Continuity
- 1 ms fast response min/max
- Fused test lead inputs
- Auto/manual ranging
- High resolution backlit display
- Min/max
- Auto selection
- Magnetic mount
- Accuracy - +/-1% +3 digits 45 to 500 Hz, +/-2% +3 digits 500 to 1 kHz at 6 mV to 1000 VAC, +/-0.5% +3 digits at 6 mV to 1000 VDC, +/-1.5% +5 digits at 6 to 10 A AC, +/-1.2% +5 digits at 6 to 10 A DC, +/-0.8% +5 digits at 600 Ohm to 6 MOhm, +/-1.5% +5 digits at 40 MOhm, +/-3% +5 digits at 10 nF to 9999 uF, +/-1.5% +3.6 deg F at -328 to 999 deg F, +/-1.5% +3 deg F at 1000 to 2462 deg F
- Resolution - 0.1 mV to 1 V at 6 mV to 1000 VAC/VDC, 0.001 to 0.01 A at 6 to 10 A AC/DC, 0.1 Ohm to 0.001 MOhm at 600 Ohm to 6 MOhm, 0.01 MOhm at 40 MOhm, 0.01 nF to 1 uF at 10 nF to 9999 uF, 0.1 deg F at -328 to 999 deg F, 1 deg F at 1000 to 2462 deg F
