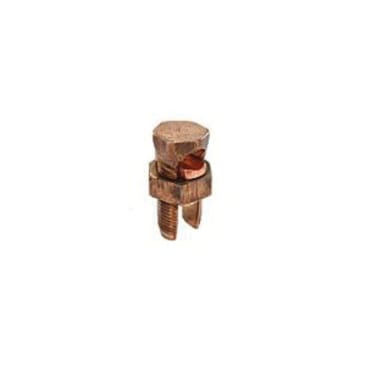

TECHSPAN S1/0 #4 - 1/0 STR COPPER SPLIT BOLT
MFR Part #: S1/0
SKU #: 1123373
Brand: Techspan® | Penn-Union™
UPC: 77685618570
Penn-Union™ by Techspan® S1/0 Type S Split Bolt Connector, 4 to 1/0 AWG Solid/Stranded Copper Conductor, Copper Alloy
For electrical power, grounding/bonding, direct burial and rebar
UL 467/CU 486A | CSA C22.2
Product Details
Attributes
Features
Penn-Union™ by Techspan® Split Bolt Connector, Type S, Solid/Stranded Copper Conductor, 4 to 1/0 AWG Conductor, 600 VAC, 385 in-lb Torque, 90 deg C, Copper Alloy, 1.64 in L x 0.88 in W
Conductor Size:
4 to 1/0 AWG
Conductor Type:
Solid/Stranded Copper
Country Of Origin:
US
Dimensions:
1.64 in L x 0.88 in W
Material:
Copper Alloy
Rewards:
AD Rewards
Specifications:
385 in-lb Torque
Temperature Rating:
90 deg C
Type:
Type S
Voltage Rating:
600 VAC
- For copper and copperweld wires
- Type 'S' for 2 wires
- 14 AWG solid minimum tap with one maximum main
- 0.75 in across flats
- The most versatile split bolt on the market
- Made from high strength copper alloy
- Highly resistant to corrosion and season cracking
- Under torque, this design provides high contact pressure between conductors, or conductor to rebar
Product Details
Penn-Union™ by Techspan® Split Bolt Connector, Type S, Solid/Stranded Copper Conductor, 4 to 1/0 AWG Conductor, 600 VAC, 385 in-lb Torque, 90 deg C, Copper Alloy, 1.64 in L x 0.88 in W
Attributes
Conductor Size: 4 to 1/0 AWG
Conductor Type: Solid/Stranded Copper
Country Of Origin: US
Dimensions: 1.64 in L x 0.88 in W
Material: Copper Alloy
Rewards: AD Rewards
Specifications: 385 in-lb Torque
Temperature Rating: 90 deg C
Type: Type S
Voltage Rating: 600 VAC
Features
- For copper and copperweld wires
- Type 'S' for 2 wires
- 14 AWG solid minimum tap with one maximum main
- 0.75 in across flats
- The most versatile split bolt on the market
- Made from high strength copper alloy
- Highly resistant to corrosion and season cracking
- Under torque, this design provides high contact pressure between conductors, or conductor to rebar
