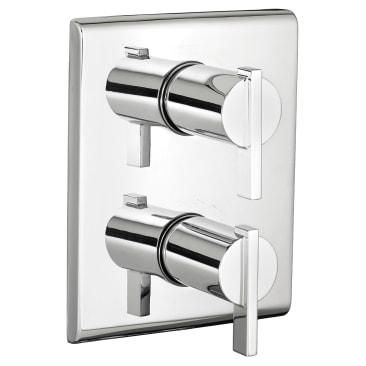

AM STD T184740.002 TIMES SQUARE 2HDL THERM VALVE TRIM
Product Details
Attributes
Features
Resources
American Standard, T184740.002, Thermostat Trim Kit, Colony® Collection, 1 Faucet Hole, Slip-On Diverter Spout, 5-1/2 in Spout Reach, 1 Handle, Metal Lever Handle, 6-3/4 in Dia Trim, Hand Shower: No, 1 Spray Function, Wall Mounting, For Use With: R110 Pressure Balance Valve, Cast Brass, Polished Chrome, Import
Arch™ itecturally inspired and awe inspiring. This thermostat trim kit is part of our minimalist Times Square® collection. When installed with a thermostatic mixing valve (sold separately), you select the water temperature with the lower handle and operate the on/off volume control with the top handle. Once set, the temperature remains constant.
- Brass construction - highest quality faucet material for durability and long life
- Back-to-back capability hot and cold can be reversed quickly and easily
- Spring loaded check valves - when the hot and cold water enters the fitting, both supplies pass through the spring-loaded check valves to prevent cross flow of hot and cold water
- Integrated stop valves - ensure easy cleaning and servicing
- Adjustable hot limit safety stop - limits the amount of hot water allowed to mix with cold
- Reduces the risk of accidental scalding
- Maximum water temperature limit may be reduced to 104 or 109 deg F
- Wax thermostatic unit - permits shuttle valve to move between the hot and cold seat to maintain the pre-selected constant water temperature
- Without valve
Product Details
American Standard, T184740.002, Thermostat Trim Kit, Colony® Collection, 1 Faucet Hole, Slip-On Diverter Spout, 5-1/2 in Spout Reach, 1 Handle, Metal Lever Handle, 6-3/4 in Dia Trim, Hand Shower: No, 1 Spray Function, Wall Mounting, For Use With: R110 Pressure Balance Valve, Cast Brass, Polished Chrome, Import
Arch™ itecturally inspired and awe inspiring. This thermostat trim kit is part of our minimalist Times Square® collection. When installed with a thermostatic mixing valve (sold separately), you select the water temperature with the lower handle and operate the on/off volume control with the top handle. Once set, the temperature remains constant.
Attributes
Features
- Brass construction - highest quality faucet material for durability and long life
- Back-to-back capability hot and cold can be reversed quickly and easily
- Spring loaded check valves - when the hot and cold water enters the fitting, both supplies pass through the spring-loaded check valves to prevent cross flow of hot and cold water
- Integrated stop valves - ensure easy cleaning and servicing
- Adjustable hot limit safety stop - limits the amount of hot water allowed to mix with cold
- Reduces the risk of accidental scalding
- Maximum water temperature limit may be reduced to 104 or 109 deg F
- Wax thermostatic unit - permits shuttle valve to move between the hot and cold seat to maintain the pre-selected constant water temperature
- Without valve
