AM STD 6045013.002 0.125GPF URINAL FV
MFR Part #: 6045013.002
SKU #: 1090027
Brand: American Standard
UPC: 012611465420

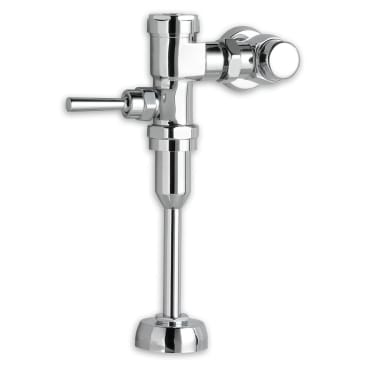

American Standard 6045013.002 Exposed Urinal Flush Valve, Manual Piston Flush Valve, Import
Cover, 3/4 in IPS Angle Stop with Back Flow Prevention and Polished Chrome Vandal-Resistant Cap, Sweat Solder, Cover Tube, Wall Flange, High Back Pressure Vacuum Breaker with Down Tube, Spud Coupling and Flange
Commercial Applications
ASSE 1037 | ANSI/ASME A112.19.2 | ADA Compliant
Product Details
Attributes
Features
Resources
American Standard, 6045013.002, Exposed Urinal Flush Valve, Manual Piston Flush Valve Collection, Import
An impressive collection of electronic and manual valves designed to meet the demands of high use spaces. Labor saving installation, water saving operation and time-saving maintenance and care.
Country Of Origin:China
Collection:Manual Piston Flush Valve
Domestic/Import:Import
Finish/Color:Polished Chrome
Fitting Connection Size:19.05 mm
Flow Rate:.125 gpf
Material:Brass
- This high efficiency 0.125 gpf flush valve saves 87% of water usage when matched with the Washbrook® 0.125 gpf HEU
- Self-cleaning brass piston with integral wiper spring prevents clogging and reduces maintenance
- Piston operation delivers superior flush accuracy and repeatability
- Piston valve remains closed and does not need to be reset after loss of water pressure
- Non-hold open handle
- Positive seal ensures leak-free performance
- No external volume adjustment
- Durable polished chrome cast brass construction is ideal for commercial applications
- Chloramine-resistant EPDM seal
- Top spud placement
- Manual urinal flush valve shall feature self-cleaning brass piston valve with integral wiper spring in bypass orifice to prevent clogging
- Valve remains closed and does not need to be reset after loss of water pressure
- Includes cast brass valve body and cover with chrome finish and Vandal-resistant stop cap
Product Details
American Standard, 6045013.002, Exposed Urinal Flush Valve, Manual Piston Flush Valve Collection, Import
An impressive collection of electronic and manual valves designed to meet the demands of high use spaces. Labor saving installation, water saving operation and time-saving maintenance and care.
Attributes
Country Of Origin: China
Collection: Manual Piston Flush Valve
Domestic/Import: Import
Finish/Color: Polished Chrome
Fitting Connection Size: 19.05 mm
Flow Rate: .125 gpf
Material: Brass
Features
- This high efficiency 0.125 gpf flush valve saves 87% of water usage when matched with the Washbrook® 0.125 gpf HEU
- Self-cleaning brass piston with integral wiper spring prevents clogging and reduces maintenance
- Piston operation delivers superior flush accuracy and repeatability
- Piston valve remains closed and does not need to be reset after loss of water pressure
- Non-hold open handle
- Positive seal ensures leak-free performance
- No external volume adjustment
- Durable polished chrome cast brass construction is ideal for commercial applications
- Chloramine-resistant EPDM seal
- Top spud placement
- Manual urinal flush valve shall feature self-cleaning brass piston valve with integral wiper spring in bypass orifice to prevent clogging
- Valve remains closed and does not need to be reset after loss of water pressure
- Includes cast brass valve body and cover with chrome finish and Vandal-resistant stop cap
