AM STD 6045101.002 1.0GPF URINAL FV
Product Details
Attributes
Features
Resources

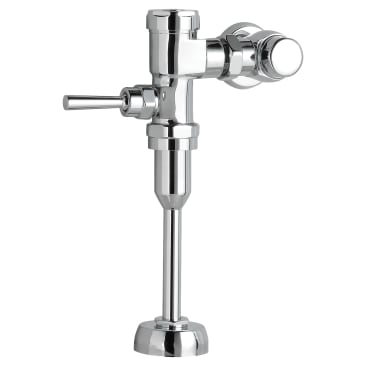

American Standard Exposed Urinal Flush Valve, Manual, FloWise® Collection, 0.125 gpf Flush, 3/4 in Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, 20 to 80 psi Pressure, Non-Hold Open Handle, Cast Brass, Polished Chrome, Import
An impressive collection of electronic and manual valves designed to meet the demands of high use spaces. Labor saving installation, water saving operation and time-saving maintenance and care.
- Self-cleaning brass piston with integral wiper spring prevents clogging and reduces maintenance
- Piston operation delivers superior flush accuracy and repeatability
- Piston valve remains closed and does not need to be reset after loss of water pressure
- Non-hold open handle
- Positive seal ensures leak-free performance
- No external volume adjustment
- Durable polished chrome cast brass construction is ideal for commercial applications
- Chloramine-resistant EPDM seal
- Adjustable tailpiece for rough-in flexibility
- Top spud placement
- Manual urinal flush valve shall feature self-cleaning brass piston valve with integral wiper spring in bypass orifice to prevent clogging
- Valve remains closed and does not need to be reset after loss of water pressure
- Includes cast brass valve body and cover with chrome finish and Vandal-resistant stop cap
Product Details
American Standard Exposed Urinal Flush Valve, Manual, FloWise® Collection, 0.125 gpf Flush, 3/4 in Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, 20 to 80 psi Pressure, Non-Hold Open Handle, Cast Brass, Polished Chrome, Import
An impressive collection of electronic and manual valves designed to meet the demands of high use spaces. Labor saving installation, water saving operation and time-saving maintenance and care.
Attributes
Features
- Self-cleaning brass piston with integral wiper spring prevents clogging and reduces maintenance
- Piston operation delivers superior flush accuracy and repeatability
- Piston valve remains closed and does not need to be reset after loss of water pressure
- Non-hold open handle
- Positive seal ensures leak-free performance
- No external volume adjustment
- Durable polished chrome cast brass construction is ideal for commercial applications
- Chloramine-resistant EPDM seal
- Adjustable tailpiece for rough-in flexibility
- Top spud placement
- Manual urinal flush valve shall feature self-cleaning brass piston valve with integral wiper spring in bypass orifice to prevent clogging
- Valve remains closed and does not need to be reset after loss of water pressure
- Includes cast brass valve body and cover with chrome finish and Vandal-resistant stop cap
