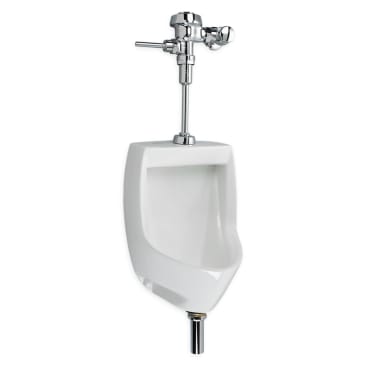

AM STD 6581001EC.020 Image 1

AM STD 6581001EC.020 MAYBROOK TOP SPUD UR

MFR Part #: 6581001EC.020
SKU #: 1175617
Brand: American Standard
UPC: 791556083820
American Standard 6581001EC.020 High Efficiency Universal Ultra Urinal, Maybrook, 0.125/1 gpf Flush Rate, Top Spud, Wall Mount, White, Import
ASME A112.19.2 | EPA WaterSense® Certified

American Standard, 6581001EC.020, Urinal, High Efficiency Universal Ultra, Maybrook Collection, 0.125/1 gpf Flush, Top Spud Location, 3/4 in Inlet Spud, 2 in NPTF Outlet Tap, 80 psi Working, Wall Mounting, Vitreous China, White, 12-3/4 in W x 12-3/4 in D x 18 in H Dimensions, Import

This high efficiency urinal uses just 0.125 gpf, which is 87% less than a standard 1 gpf urinal. Features include a flushing rim and a washout flush action for effectiveness and EverClean® surface that stays cleaner, longer. This compact, low-consumption model is ideal for commercial applications where reducing water consumption is a priority.

Product Details

American Standard, 6581001EC.020, Urinal, High Efficiency Universal Ultra, Maybrook Collection, 0.125/1 gpf Flush, Top Spud Location, 3/4 in Inlet Spud, 2 in NPTF Outlet Tap, 80 psi Working, Wall Mounting, Vitreous China, White, 12-3/4 in W x 12-3/4 in D x 18 in H Dimensions, Import

This high efficiency urinal uses just 0.125 gpf, which is 87% less than a standard 1 gpf urinal. Features include a flushing rim and a washout flush action for effectiveness and EverClean® surface that stays cleaner, longer. This compact, low-consumption model is ideal for commercial applications where reducing water consumption is a priority.

Attributes

Finish/Color: White
Flush Rate: 0.125/1 gpf
Height: 18 in
Length: 12-3/4 in
Width: 12-3/4 in
Collection: Maybrook
Dimensions: 12-3/4 in W x 12-3/4 in D x 18 in H
Domestic/Import: Import
Inlet Spud Size: 3/4 in
Material: Vitreous China
Mounting Type: Wall
Outlet Tap Size: 2 in NPTF
Spud Location: Top
Working Pressure: 80 psi

Features

  • Ultra-high efficiency, low consumption, operates in the range of 0.125 gpf to 1 gpf (0.5 Lpf to 3.8 Lpf)
  • Permanent EverClean® anti-microbial surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface
  • Flushing rim
  • Washout flush action
  • Integral strainer
  • Fixture only
  • 20 psi flowing pressure
