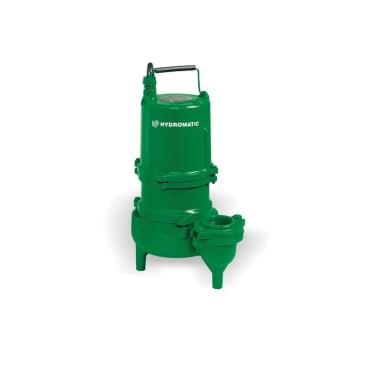

HYDROMATIC SK75M2 20 3/4HP SUMP PUMP 20FT CORD
MFR Part #: SK75M2 20
SKU #: 0382631
Brand: HYDROMATIC®
UPC: 400000298634
HYDROMATIC® SK75M2 20 SK Series Manual Submersible Sewage Ejector Pump, 2 in NPT Outlet, 1 ph, 3/4 hp, Cast Iron
Commercial Sewage, Residential Sewage, High-Capacity Sump and Septic Tank Effluent
CSA 108 | cCSAus Certified | UL 778
Product Details
Attributes
Features
Resources
HYDROMATIC® Submersible Sewage Ejector Pump, Manual, Series: SK Series, 2 in NPT Outlet, 34 ft Maximum Head, 3/4 hp, 230 VAC, 9 A, 60 Hz Frequency, 1 ph, 1750 rpm Motor, STWA Cord, 1 Service Factor, 2-Vane Semi-Open Impeller, 140 deg F, NEMA A Enclosure, Ball Bearing, Cast Iron, 19 in OAH Dimensions
Horsepower:
3/4 hp
Voltage Rating:
230 VAC
Amperage Rating:
9 A
Bearing Type:
Ball
Cord Type:
STWA
Dimensions:
19 in OAH
Enclosure Type:
NEMA A
Frequency Rating:
60 Hz
Impeller Type:
2-Vane Semi-Open
Material:
Cast Iron
Maximum Head:
34 ft
Motor Speed:
1750 rpm
Outlet Size:
2 in NPT
Phase:
1
Series:
SK Series
Service Factor:
1
Temperature Rating:
140 deg F
Type:
Manual
- Carbon ceramic type 21 mechanical shaft seal
- Oil filled motor with automatic reset thermal overload for maximum protection
- Upper and lower ball bearing construction
- Capacitor start motor for improved starting torque and pump performance (1-phase models)
- 24 in Dia for simplex/36 in Dia for duplex minimum sump
- Stainless steel fasteners and shaft
- 2 in solid handling
- 20 ft L power cord
- Intermittent operation
- Single row ball upper/lower bearing
Product Details
HYDROMATIC® Submersible Sewage Ejector Pump, Manual, Series: SK Series, 2 in NPT Outlet, 34 ft Maximum Head, 3/4 hp, 230 VAC, 9 A, 60 Hz Frequency, 1 ph, 1750 rpm Motor, STWA Cord, 1 Service Factor, 2-Vane Semi-Open Impeller, 140 deg F, NEMA A Enclosure, Ball Bearing, Cast Iron, 19 in OAH Dimensions
Attributes
Horsepower: 3/4 hp
Voltage Rating: 230 VAC
Amperage Rating: 9 A
Bearing Type: Ball
Cord Type: STWA
Dimensions: 19 in OAH
Enclosure Type: NEMA A
Frequency Rating: 60 Hz
Impeller Type: 2-Vane Semi-Open
Material: Cast Iron
Maximum Head: 34 ft
Motor Speed: 1750 rpm
Outlet Size: 2 in NPT
Phase: 1
Series: SK Series
Service Factor: 1
Temperature Rating: 140 deg F
Type: Manual
Features
- Carbon ceramic type 21 mechanical shaft seal
- Oil filled motor with automatic reset thermal overload for maximum protection
- Upper and lower ball bearing construction
- Capacitor start motor for improved starting torque and pump performance (1-phase models)
- 24 in Dia for simplex/36 in Dia for duplex minimum sump
- Stainless steel fasteners and shaft
- 2 in solid handling
- 20 ft L power cord
- Intermittent operation
- Single row ball upper/lower bearing
