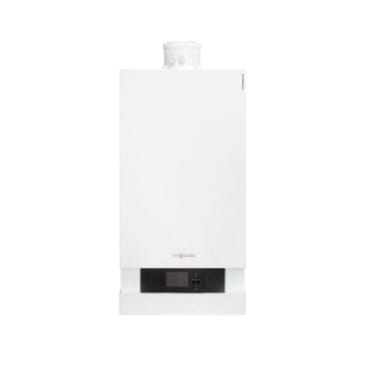

VIESSMANN B2HAA59 Image 1

VIESSMANN B2HAA59 VITODEN 200 CONDENSING BOILER B2HA-530

MFR Part #: B2HAA59
SKU #: 1164505
Brand: Viessmann Manufacturing®
UPC: 400007009752
VIESSMANN® B2HA Series 530 B2HAA59 Gas Fired Condensing Boiler, 113 to 530 MBtu/hr BTU, 120 VAC, NPTM x NPTF
Limited Lifetime
Mounting Bracket, Mounting Bolts, Installation Fittings and Screws
CSA Certified|NB Certified|ASME/CSD-1|AHRI Certified

VIESSMANN® Gas Fired Condensing Boiler, B2HA Series, Model: 530, 120 VAC, 12 A, 21 to 155 kW Power, 60 Hz Frequency, 113 to 530 MBtu/hr BTU, 38 gpm Flow Rate, 80 psig Pressure, NPTM x NPTF Connection, Liquid Propane Gas, Natural Gas Fuel, Matrix Cylinder Burner, 490 mbh DOE Heating, Noise Rating: 61 dB, Wall Mounting, Stainless Steel, 32 to 104 deg F, Dimensions: 44-1/2 in H x 23-5/8 in W x 27.1 in D

Vitodens 200-W is a gas fired, wall-mounted condensing boiler with modulating cylinder burner and heat exchanger made of stainless steel. Rated input 12 to 530 mbh.

Product Details

VIESSMANN® Gas Fired Condensing Boiler, B2HA Series, Model: 530, 120 VAC, 12 A, 21 to 155 kW Power, 60 Hz Frequency, 113 to 530 MBtu/hr BTU, 38 gpm Flow Rate, 80 psig Pressure, NPTM x NPTF Connection, Liquid Propane Gas, Natural Gas Fuel, Matrix Cylinder Burner, 490 mbh DOE Heating, Noise Rating: 61 dB, Wall Mounting, Stainless Steel, 32 to 104 deg F, Dimensions: 44-1/2 in H x 23-5/8 in W x 27.1 in D

Vitodens 200-W is a gas fired, wall-mounted condensing boiler with modulating cylinder burner and heat exchanger made of stainless steel. Rated input 12 to 530 mbh.

Attributes

Amperage Rating: 12 A
Flow Rate: 38 gpm
Frequency Rating: 60 Hz
Fuel Type: Liquid Propane Gas, Natural Gas
Material: Stainless Steel
Mounting Type: Wall
Temperature Rating: 32 to 104 deg F
Voltage Rating: 120 VAC

Features

  • Best value in its class with new industry leading technology and the most standard features
  • Intelligent Lambda Pro gas management system automatically adjusts to different gas qualities for optimum efficiency and performance
  • Compact, lightweight design and zero clearance to combustibles
  • Efficiency up to 98% at full modulation and up to 95% AFUE
  • Low emission combustion for environmentally friendly operation
  • Extremely quiet operation, quieter than most refrigerators
