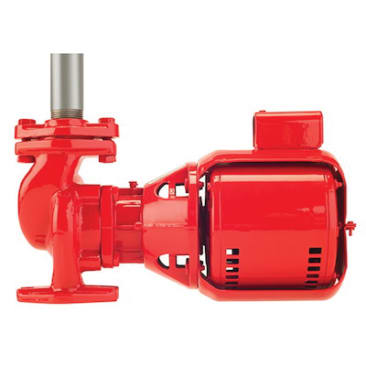

IB CIRCULATOR L/FLNG (H-32) ARMSTRONG 174034-013
MFR Part #: 174034-013
SKU #: 1028502
Brand: Armstrong Fluid Technology
UPC: 400003956579
ARMSTRONG H Series H-32 174034-013 Circulator Pump, 36 gpm, 115 V, 60 Hz, 125 psi Max Pressure, 1800 rpm Motor, Iron
For hydronic heating and cooling, domestic water systems, multi-stage zoning and general industrial services
CSA Certified | NSF Certified
Product Details
Attributes
Features
Resources
ARMSTRONG Circulator Pump, H Series, Model: H-32, 36 gpm Flow Rate, 12 ft Maximum Head, 115 V, 60 Hz, 125 psi Maximum Pressure, 1800 rpm Motor Speed Rating, 1/6 hp, 1 x 1-1/4 x 1-1/2 in Connection, NPT Flanged Connection, 1 ph Phase, In-Line Mounting, 225 deg F, Iron, 15 in L x 10.26 in H, Additional Information: Non-Ferrous Impeller Material
Additional Information:
Non-Ferrous Impeller Material
Body Material:
Cast Iron
Connection Size:
1 x 1-1/4 x 1-1/2 in
Connection Type:
NPT Flanged
Dimensions:
15 in L x 10.26 in H
Flow Rate:
36 gpm
Frequency Rating:
60 Hz
HP Rating:
1/6 hp
Impeller Material:
Non-Ferrous
Material:
Iron
Maximum Head:
12 ft
Maximum Pressure:
125 psi
Model:
H-32
Motor Speed Rating:
1800 rpm
Mounting Type:
In-Line
Phase:
1 ph
Pressure Rating:
125 psi at 225 deg F
Series:
H Series
Speed Rating:
1800 rpm
Temperature Rating:
225 deg F
Voltage Rating:
115 V
- Standard three-piece design with sleeve - oil lubricated bearing
- Radially split body can be left in-line while servicing pump, eliminating disconnecting of pipes
- Oversized shaft made from special alloy steel
- Balanced centrifugal impeller ensures maximum water delivery in the HVAC system
- Proven seal design made from strong and long-lasting materials for extended operating life
- Three piece modular construction and back pull-out design for easy replacement of wear components
Product Details
ARMSTRONG Circulator Pump, H Series, Model: H-32, 36 gpm Flow Rate, 12 ft Maximum Head, 115 V, 60 Hz, 125 psi Maximum Pressure, 1800 rpm Motor Speed Rating, 1/6 hp, 1 x 1-1/4 x 1-1/2 in Connection, NPT Flanged Connection, 1 ph Phase, In-Line Mounting, 225 deg F, Iron, 15 in L x 10.26 in H, Additional Information: Non-Ferrous Impeller Material
Attributes
Additional Information: Non-Ferrous Impeller Material
Body Material: Cast Iron
Connection Size: 1 x 1-1/4 x 1-1/2 in
Connection Type: NPT Flanged
Dimensions: 15 in L x 10.26 in H
Flow Rate: 36 gpm
Frequency Rating: 60 Hz
HP Rating: 1/6 hp
Impeller Material: Non-Ferrous
Material: Iron
Maximum Head: 12 ft
Maximum Pressure: 125 psi
Model: H-32
Motor Speed Rating: 1800 rpm
Mounting Type: In-Line
Phase: 1 ph
Pressure Rating: 125 psi at 225 deg F
Series: H Series
Speed Rating: 1800 rpm
Temperature Rating: 225 deg F
Voltage Rating: 115 V
Features
- Standard three-piece design with sleeve - oil lubricated bearing
- Radially split body can be left in-line while servicing pump, eliminating disconnecting of pipes
- Oversized shaft made from special alloy steel
- Balanced centrifugal impeller ensures maximum water delivery in the HVAC system
- Proven seal design made from strong and long-lasting materials for extended operating life
- Three piece modular construction and back pull-out design for easy replacement of wear components
