REED 03485 T15 3/16 TO 1-1/4 TUBING CUTTER

MFR Part #: 03485
SKU #: 0613614
Brand: Reed
UPC: 757033034853
Reed Quick Release™ 03485 Tubing Cutter, 3/16 to 1-1/4 in
Lifetime

Reed Quick Release™ Tubing Cutter, 3/16 to 1-1/4 in Nominal Capacity, 8.7 in Overall Length, Applicable Materials: Copper, Plastic and PVC

Tubing cutters are a simple, durable design. Each tubing cutter has a screw feed with a large grip knob to make it easier to tighten the cutter. T10 and T15 cutters are zinc alloy construction with a built-in reamer for convenient cutting and deburring. T20 cutter is larger but light due to its aluminum construction. T20 cutter features a fold-out reamer. Wide rollers on all three cutter models yield a square cut while thin cutter wheel profile ensures a quick, clean cut.

Product Details

Reed Quick Release™ Tubing Cutter, 3/16 to 1-1/4 in Nominal Capacity, 8.7 in Overall Length, Applicable Materials: Copper, Plastic and PVC

Tubing cutters are a simple, durable design. Each tubing cutter has a screw feed with a large grip knob to make it easier to tighten the cutter. T10 and T15 cutters are zinc alloy construction with a built-in reamer for convenient cutting and deburring. T20 cutter is larger but light due to its aluminum construction. T20 cutter features a fold-out reamer. Wide rollers on all three cutter models yield a square cut while thin cutter wheel profile ensures a quick, clean cut.

Attributes

Country Of Origin: US
Additional Information: 1.3 lb Weight
Maximum Pipe/Tube Diameter: 1-1/4 in
Minimum Pipe/Tube Diameter: 3/16 in
Overall Depth: 1-5/8 in
Overall Length: 6-1/2 in
Overall Width: 2-3/4 in

Features

  • Simple feed screw design aids in cutter durability in tough environments

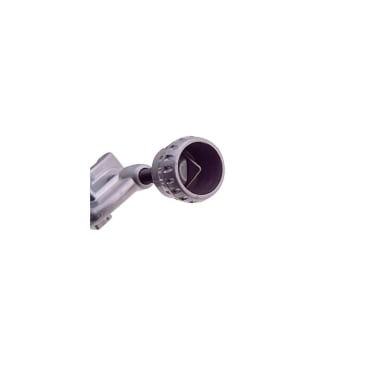

  • Internal reamer built inside knob for operator convenience
  • Large grip knob permits easy adjustment of feed screw
  • Wide rollers work to minimize burrs by smoothing the cut area

Resources

Full Engineering Drawing
