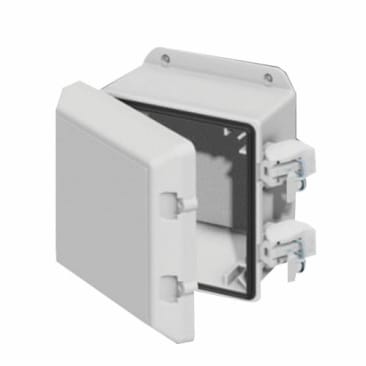

EXM 5600ESPLQ161406 QUICK RLS FBRGLASS ENCLOSURE
Product Details
Attributes
Features
Resources
exm® Quick Release Enclosure, Series: 5600 ESPLQ Series, Padlock Locking, 12, NEMA 4X, IP66 IP Rating, Wall Mount, Polycarbonate/Polyester, 14 in Width, 16 in Height, 6 in D
The 5600 ESPLQ are suited for use indoors or outdoors where corrosion is a problem, to protect the enclosed equipment from water coming from any direction, dust, dirt and oil. The 5600 ESPLQ is made of a polyester and polycarbonate hybrid blend, aesthetically designed and produced exclusively by exm®. It is the material of choice for numerous industrial applications. Its electrical, chemical and physical properties allow to be used in many environments and for a wide variety of applications. A high-quality molded gasket ensures a complete NEMA 6P seal. The cover screws are made of stainless steel. The body of the 5600 ESPLQ enclosures incorporates mounting holes. Enclosures can be completed with an optional 14 ga galvanized inner panel, which can be mounted in the rear of the enclosure or on the cover. Inner panels and mounting feet are secured by anti-vibration screws. Quick-release latches can be removed and replaced by cover screw inserts.
- Patterned drill marks
- Removable hinge cover allows 200 deg door opening
- Provision for an extra mounting hole
- Incorporated mounting feet
- Molded double sealing gasket
- Stainless steel 316 latch hook
- Provision for accessory mount
- Removable locking system
- Can be replaced by the screw bracket
Product Details
exm® Quick Release Enclosure, Series: 5600 ESPLQ Series, Padlock Locking, 12, NEMA 4X, IP66 IP Rating, Wall Mount, Polycarbonate/Polyester, 14 in Width, 16 in Height, 6 in D
The 5600 ESPLQ are suited for use indoors or outdoors where corrosion is a problem, to protect the enclosed equipment from water coming from any direction, dust, dirt and oil. The 5600 ESPLQ is made of a polyester and polycarbonate hybrid blend, aesthetically designed and produced exclusively by exm®. It is the material of choice for numerous industrial applications. Its electrical, chemical and physical properties allow to be used in many environments and for a wide variety of applications. A high-quality molded gasket ensures a complete NEMA 6P seal. The cover screws are made of stainless steel. The body of the 5600 ESPLQ enclosures incorporates mounting holes. Enclosures can be completed with an optional 14 ga galvanized inner panel, which can be mounted in the rear of the enclosure or on the cover. Inner panels and mounting feet are secured by anti-vibration screws. Quick-release latches can be removed and replaced by cover screw inserts.
Attributes
Features
- Patterned drill marks
- Removable hinge cover allows 200 deg door opening
- Provision for an extra mounting hole
- Incorporated mounting feet
- Molded double sealing gasket
- Stainless steel 316 latch hook
- Provision for accessory mount
- Removable locking system
- Can be replaced by the screw bracket
