WATER / OIL / DUST TIGHT ENCLOSURE EXM 5412 ES363612
Product Details
Attributes
Features
Resources

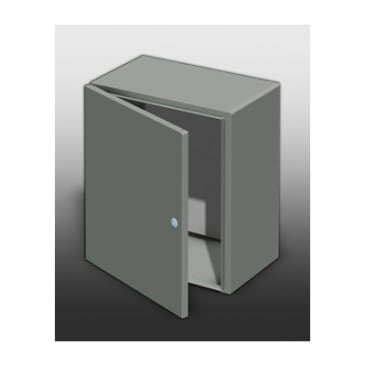

exm® Enclosure, Series: 5412 ES, 36 in Width, 12 in Depth, 36 in Height, NEMA 4-12/IP66 NEMA Rating, 34 x 34 in Panel, Lock: Quarter Turn, Wall Mounting, Mild Steel, Smooth
The 5412 ES water, oil and dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 5412 ES are made of high quality 14 ga or 16 ga steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable water tight seal. The pins of the concealed hinges can be pulled out to remove the door. A 1/4 turn locking mechanism (or 3 point latch system on larger enclosures) ensures positive closing. Internal mounting holes are provided. Each enclosure comes complete with a 12 ga galvanized inner panel, which is double bent for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray.
- Galvanized inner pane
Product Details
exm® Enclosure, Series: 5412 ES, 36 in Width, 12 in Depth, 36 in Height, NEMA 4-12/IP66 NEMA Rating, 34 x 34 in Panel, Lock: Quarter Turn, Wall Mounting, Mild Steel, Smooth
The 5412 ES water, oil and dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 5412 ES are made of high quality 14 ga or 16 ga steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable water tight seal. The pins of the concealed hinges can be pulled out to remove the door. A 1/4 turn locking mechanism (or 3 point latch system on larger enclosures) ensures positive closing. Internal mounting holes are provided. Each enclosure comes complete with a 12 ga galvanized inner panel, which is double bent for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray.
Attributes
Features
- Galvanized inner pane
