RCL FXLED105SF Image 1

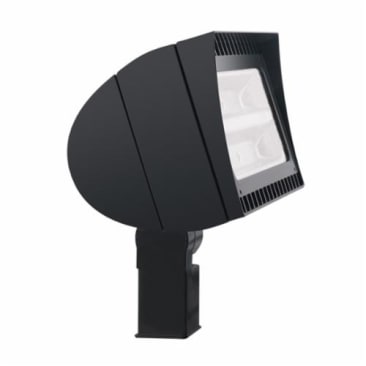

LED FLOODLIGHT COOL 5100K SLPFTTR MNT BRONZE RCL FXLED105SF

MFR Part #: FXLED105SF
SKU #: 1111711
Brand: RAB Lighting
UPC: 019813926421
RAB Lighting FXLED105SF Standard Floodlight Fixture,) LED Lamp, 288 W Fixture, 120/208/240/277 V AC, Bronze Housing
5 years
This product may be subject to ecological fees.
Wet Locations, Building Facade Lighting, Sign Lighting, LED Landscape Lighting, Outdoor and Instant on Security Lighting Applications
ANSI C78.377 | California Title 24 | UL Listed | DLC Listed | IESNA LM-79/80

RAB Lighting Floodlight Fixture, Standard, Series: FXLED, 120/208/240/277 V AC, 288 W Fixture, 0.89/0.58/0.5/0.44 A, LED Lamp, 105 W Lamp, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 71 CRI, Class 2/Constant Current Ballast, Tempered Glass Lens, 10908 Lumens, NEMA 7H x 6V/IP65 Enclosure, Slip Fitter Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 14 in L x 9 in W x 9 in H Dimensions

Product Details

RAB Lighting Floodlight Fixture, Standard, Series: FXLED, 120/208/240/277 V AC, 288 W Fixture, 0.89/0.58/0.5/0.44 A, LED Lamp, 105 W Lamp, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 71 CRI, Class 2/Constant Current Ballast, Tempered Glass Lens, 10908 Lumens, NEMA 7H x 6V/IP65 Enclosure, Slip Fitter Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 14 in L x 9 in W x 9 in H Dimensions

Attributes

Amperage Rating: 0.89/0.58/0.5/0.44 A
Average Life: 100000 hr
Ballast Type: Class 2/Constant Current
Color Rendering Index (CRI): 71
Color Temperature: 5000 K
Dimensions: 14 in L x 9 in W x 9 in H
Enclosure Type: NEMA 7H x 6V/IP65
Fixture Wattage: 288 W
Housing Finish: Bronze
Housing Material: Die Cast Aluminum
Lamp Type: LED
Lamp Wattage: 105 W
Lens Type: Tempered Glass
Light Color: Cool White
Lumens: 10908 Lumens
Mounting Type: Slip Fitter
Series: FXLED
Type: Standard
Voltage Rating: 120/208/240/277 V AC

Features

  • Ultra high output, high efficiency LED floodlight with wide NEMA type 6H x 6V beam spread
  • Patent pending airflow technology ensures long LED and driver lifespan
  • Airflow technology heat dissipation
  • No photocell

Resources

Specification Sheet
Warranty Information
