RCL FNH1000SFQT Image 1
RCL FNH1000SFQT Image 2
RCL FNH1000SFQT Image 3
RCL FNH1000SFQT Image 4
content loaded
RCL FNH1000SFQT Image 1

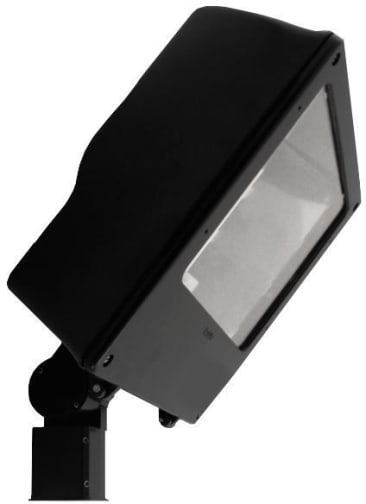

RCL FNH1000SFQT FLOODINATOR 1000W HID FLOOD QUAD TAP

MFR Part #: FNH1000SFQT
SKU #: 1115986
Brand: RAB Lighting
UPC: 019813975214
RAB FNH1000SFQT HID Floodlight Fixture, BT56 Lamp, 1080 W Fixture, 120/208/240/277 VAC, Bronze Housing
This product may be subject to ecological fees.
Lamp
Wet Locations
ARRA Compliant | Buy American Act Compliant | TAA Compliant | UL Listed

RAB Floodlight Fixture, HID, 120/208/240/277 VAC, 1080 W Fixture, 7.8/9/4/5.2/3.7/4.5/3.2/3.9 A, BT56 Lamp, 1000 W Lamp, 20000 hr Average Life, Constant Wattage Autotransformer (CWA) HPF Quad Tap Ballast, Tempered Glass Lens, 110000 Lumens Lumens, Slip Fitter Mounting, Aluminum Housing Material, Bronze Housing Finish, 29 in L x 23-3/4 in W x 10-1/4 in D Dimensions

Product Details

RAB Floodlight Fixture, HID, 120/208/240/277 VAC, 1080 W Fixture, 7.8/9/4/5.2/3.7/4.5/3.2/3.9 A, BT56 Lamp, 1000 W Lamp, 20000 hr Average Life, Constant Wattage Autotransformer (CWA) HPF Quad Tap Ballast, Tempered Glass Lens, 110000 Lumens Lumens, Slip Fitter Mounting, Aluminum Housing Material, Bronze Housing Finish, 29 in L x 23-3/4 in W x 10-1/4 in D Dimensions

Attributes

Amperage Rating: 7.8/9/4/5.2/3.7/4.5/3.2/3.9 A
Average Life: 20000 hr
Ballast Type: Constant Wattage Autotransformer (CWA) HPF Quad Tap
Country Of Origin: US
Dimensions: 29 in L x 23-3/4 in W x 10-1/4 in D
Fixture Wattage: 1080 W
Housing Finish: Bronze
Housing Material: Aluminum
Lamp Type: BT56
Lamp Wattage: 1000 W
Lens Type: Tempered Glass
Lumens: 110000 Lumens
Mounting Type: Slip Fitter
Type: HID
Voltage Rating: 120/208/240/277 VAC

Features

  • Die cast door frame held captive when opened
  • Durable die cast aluminum housing and frame
  • Anodized aluminum reflector
  • Silicone gasket for durable weatherproofing and easy relamping
  • Stainless steel external hardware
  • Ballast compartment separated by anodized aluminum die formed wall
  • 5/32 in THK thermal tempered shock resistant glass lens
  • Die cast aluminum housing
  • 7.8/9 A at 120 VAC, 4/5.2 A at 208 VAC, 3.7/4.5 A at 240 VAC, 3.2/3.9 A at 277 VAC
