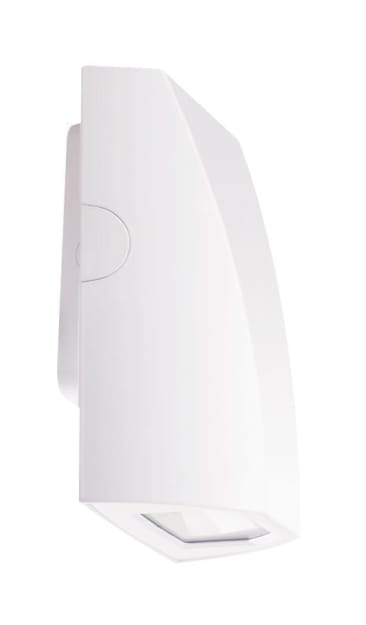

SLIM 18W NEUTRAL LED 120V TO 277V WALLMOUNT WH RCL SLIM18NW
Product Details
Attributes
Features
Resources
RAB Wallpack, Series: SLIM, 120/208/240/277 VAC, 20 W Fixture, 0.18/0.11/0.09/0.08 A, LED Lamp, 18 W Lamp, 100000 hr Average Life, Neutral Light, 4000 K Color Temperature, 82 CRI, Class 2/Constant Current Ballast, Tempered Glass Lens, 1470 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, White Housing Finish, 8.75 in H x 6.5 in W x 3.9 in D Dimensions
12, 18 and 26 W Slim wall packs are ultra efficient and deliver impressive light distribution with a compact low profile design that's super easy to install as a downlight or uplight.
- Ultra efficient and deliver impressive light distribution with a compact low profile design that's super easy to install as a downlight or uplight
- Precision die cast aluminum housing
- High temperature silicone gaskets
- Specular thermoplastic reflector
- Recommended mounting height up to 14 ft
- Superior heat sinking with internal air flow fins
- Heavy duty mounting bracket with hinged housing for easy installation
- Mercury and UV free
- -40 to 40 deg C temperature
- Full cutoff, fully shielded LED wallpack
- Can be used as a downlight or uplight
- Contractor friendly features for easy installation
- 93 LPW efficacy
- High temperature silicone gasket
- Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
- 0.18 A at 120 VAC, 0.11 A at 208 VAC, 0.09 A at 240 VAC, 0.08 A at 277 VAC
- Without photocell
Product Details
RAB Wallpack, Series: SLIM, 120/208/240/277 VAC, 20 W Fixture, 0.18/0.11/0.09/0.08 A, LED Lamp, 18 W Lamp, 100000 hr Average Life, Neutral Light, 4000 K Color Temperature, 82 CRI, Class 2/Constant Current Ballast, Tempered Glass Lens, 1470 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, White Housing Finish, 8.75 in H x 6.5 in W x 3.9 in D Dimensions
12, 18 and 26 W Slim wall packs are ultra efficient and deliver impressive light distribution with a compact low profile design that's super easy to install as a downlight or uplight.
Attributes
Features
- Ultra efficient and deliver impressive light distribution with a compact low profile design that's super easy to install as a downlight or uplight
- Precision die cast aluminum housing
- High temperature silicone gaskets
- Specular thermoplastic reflector
- Recommended mounting height up to 14 ft
- Superior heat sinking with internal air flow fins
- Heavy duty mounting bracket with hinged housing for easy installation
- Mercury and UV free
- -40 to 40 deg C temperature
- Full cutoff, fully shielded LED wallpack
- Can be used as a downlight or uplight
- Contractor friendly features for easy installation
- 93 LPW efficacy
- High temperature silicone gasket
- Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
- 0.18 A at 120 VAC, 0.11 A at 208 VAC, 0.09 A at 240 VAC, 0.08 A at 277 VAC
- Without photocell
