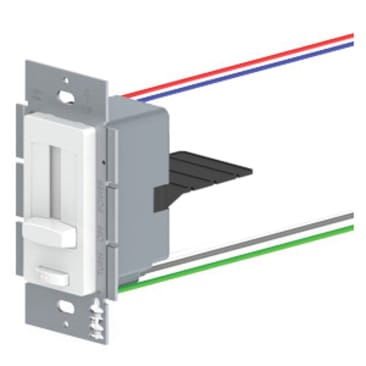

STANPRO 67071 Image 1

STANPRO 67071 LED/DRIVER/DIMMER/60W/12V

MFR Part #: 67071
SKU #: 1207521
Brand: Stanpro
UPC: 69549670716
STANDARD® 67071 Dimmable Dimmer Switch With LED Driver, 12 VDC, 1000 mA, Glossy White
5 years
cULus Listed | Class 2 Compliant | Dry Locations

STANDARD® Dimmer Switch, Dimmable, 12 VDC, 1000 mA, 60 W Power, 60 Hz Frequency, LED Lamp, Power Factor: 0.9, Hardwired Terminal, 32 to 104 deg F, Glossy White, 4.1 in H x 2.1 in W Dimensions

STANDARD® DUOLED offers an innovative compact design, combining a dimmer switch and an LED hardwired driver. It converts line voltage (120 VAC) into low voltage (12 VDC/24 VDC), while offering outstanding dimming performances. Having both products combined into one also eliminates the compatibility issues that are often seen between LED drivers and dimmer switches. DUOLED also offers a timeless and sleek look with a glossy white finish to blend seamlessly with your design.

Product Details

STANDARD® Dimmer Switch, Dimmable, 12 VDC, 1000 mA, 60 W Power, 60 Hz Frequency, LED Lamp, Power Factor: 0.9, Hardwired Terminal, 32 to 104 deg F, Glossy White, 4.1 in H x 2.1 in W Dimensions

STANDARD® DUOLED offers an innovative compact design, combining a dimmer switch and an LED hardwired driver. It converts line voltage (120 VAC) into low voltage (12 VDC/24 VDC), while offering outstanding dimming performances. Having both products combined into one also eliminates the compatibility issues that are often seen between LED drivers and dimmer switches. DUOLED also offers a timeless and sleek look with a glossy white finish to blend seamlessly with your design.

Attributes

Amperage Rating: 1000 mA
Color: Glossy White
Dimensions: 4.1 in H x 2.1 in W
Frequency Rating: 60 Hz
Lamp Type: LED
Power Factor: .9
Power Rating: 60 W
Temperature Rating: 32 to 104 deg F
Terminal Type: Hardwired
Type: Dimmable
Voltage Rating: 12 V DC

Features

  • Dimmer switch with built-in LED driver
  • Converts line voltage (120 VAC) into low voltage (12 VDC/24 VDC)
  • Eliminates compatibility issues between the driver and the dimmer
  • Fits in a single gang box
  • Excellent dimming performance (1 to 100% dimming)
  • Includes voltage barrier partition to install high and low voltage circuit in the same gang box
  • No need to find room to put the driver

Resources

Catalog
Instruction/Installation Manual
Technical Bulletin
