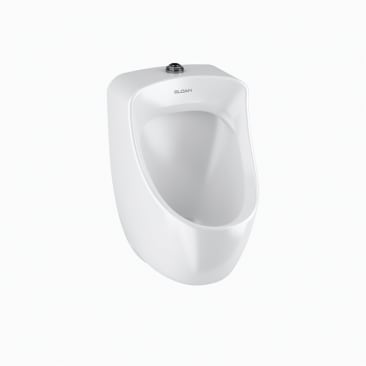

SLOAN SU-7009-A URINAL (1107009)

Name: SLOAN SU-7009-A URINAL (1107009)
Brand: Sloan®
SKU: 1240100
Availability: OutOfStock

MFR Part #: 1107009

SKU #: 1240100

Brand: Sloan®

UPC: 671254404090

Sloan® 1107009 SU-7009 Washdown Urinal Fixture, 0.125/0.5 gpf Flush Rate, Top Spud, Wall Mount, Import

Strainer

cUPC Listed | California Energy Commission | CalGreen Compliant | IAPMO Listed to meet or exceed ASME A112.19.2 standards | Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly | Water Sense listed by EPA that qualifies for most rebate programs

Product Details
Attributes
Features
Resources

Sloan® Washdown Urinal Fixture, Series: SU-7009, 0.125/0.5 gpf Flush, Top Spud Location, 3/4 in IPS Inlet Spud, 2 in Outlet Tap, Wall Mount, Vitreous China, 14-3/16 in W x 14-3/4 in D x 23-1/2 in H Urinal, Import

Product Details

Sloan® Washdown Urinal Fixture, Series: SU-7009, 0.125/0.5 gpf Flush, Top Spud Location, 3/4 in IPS Inlet Spud, 2 in Outlet Tap, Wall Mount, Vitreous China, 14-3/16 in W x 14-3/4 in D x 23-1/2 in H Urinal, Import

Attributes

Country Of Origin: China

Dimensions: 14-3/16 in W x 14-3/4 in D x 23-1/2 in H Urinal

Domestic/Import: Import

Flush Rate: 0.125/0.5 gpf

Height: 23-1/2 in

Inlet Spud Size: 3/4 in IPS

Length: 14-3/4 in

Material: Vitreous China

Mounting Type: Wall

Outlet Tap Size: 2 in

Series: SU-7009

Spud Location: Top

Width: 14-3/16 in

Features

Designed to maximize and complement Sloan® flushometers
Small size and clean lines fits a large variety of applications and restroom looks
Thorough wash-down flushing action
Durable, hygienic vitreous china construction
Vandal resistant stainless steel strainer included

Resources

Instruction/Installation Manual

Line Drawing

Specification Sheet
