WEBSTONE H-101702W Image 1

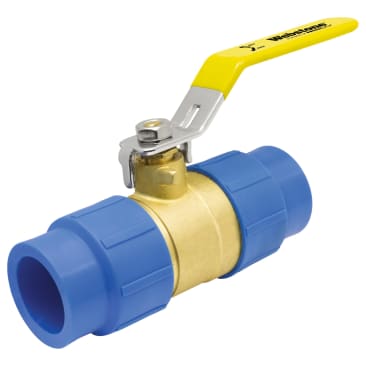

WEBSTONE H-101702W 1/2IN BRASS BALL VALVE PP-R ENDS LF 20MM

MFR Part #: H-101702W
SKU #: 1164850
Brand: NIBCO® | Webstone
UPC: 018394011151
Webstone Pro-Connect PP-R Pro® Clean Brass® H-101702W 10170W Ball Valve, 1/2 in Nominal, PP-R End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
Limited Lifetime
Adjustable Packing Gland
Residential, Commercial and Industrial
ASTM F 2389 | Certified to NSF/ANSI 61 & NSF/ANSI 372 | PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Webstone Pro-Connect PP-R Pro® Clean Brass® Ball Valve, Series: 10170W, 1/2 in Nominal, PP-R, 600 psi, 100 deg F, Full Port, Media: Gas/Oil/Water, Lever Handle Actuator, HCP Brass Ball, 4-1/8 in Inlet to Outlet Length, 2 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE, Blue, Import

Easily control flow with this quarter-turn valve. Enjoy all of the labor saving advantages of Webstone with over-molded connections for heat fusion. Designed for use with water, oil, glycol mix in residential or commercial plumbing and heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

Product Details

Webstone Pro-Connect PP-R Pro® Clean Brass® Ball Valve, Series: 10170W, 1/2 in Nominal, PP-R, 600 psi, 100 deg F, Full Port, Media: Gas/Oil/Water, Lever Handle Actuator, HCP Brass Ball, 4-1/8 in Inlet to Outlet Length, 2 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE, Blue, Import

Easily control flow with this quarter-turn valve. Enjoy all of the labor saving advantages of Webstone with over-molded connections for heat fusion. Designed for use with water, oil, glycol mix in residential or commercial plumbing and heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

Attributes

Connection Type: PP-R
Inlet to Outlet Length: 4-1/8 in
Nominal Size: 1/2 in
Operator Type: Lever Handle
Pressure Rating: 600 psi
Ball Material: HCP Brass
Body Material: Forged Brass
Domestic/Import: Import
Finish/Color: Blue
Media: Gas/Oil/Water
Port Type: Full
Series: 10170W
Softgoods Material: PTFE
Temperature Rating: 100 deg F
Top to Inlet Center: 2 in
Trim Material: Brass Stem and PTFE Seat

Features

  • Controls Flow With Quarter-Turn Lever Handle
  • Permanent Leak-Free Connections Made in Seconds and Compatible With All PP-R and PP-RCT Piping Systems
  • Saves Time
  • Replaces Components
  • Eliminates Leakpaths
  • This valve is actuated by a blowout proof stem
