WEBSTONE H-40614 Image 1
WEBSTONE H-40614 Image 2
content loaded
WEBSTONE H-40614 Image 1

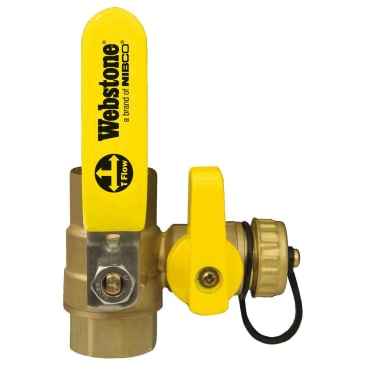

WEBSTONE H-40614 1IN BALL DRAIN VALVE

MFR Part #: H-40614
SKU #: 1170861
Brand: NIBCO® | Webstone
UPC: 018394406148
Webstone H-40614 Pro-Pal® 4061 Standard Ball Valve, 1 in Nominal, IPS End Style, Full Port, Import
Lifetime
Residential, Commercial and Industrial Applications
ANSI B1.20.1 | PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Webstone, H-40614, Ball Valve, Standard, Series: Pro-Pal® 4061, 1 in Nominal, IPS End Style, 600 psig WOG Pressure, 100 deg F, Full Port, Media: Gas/Oil/Water, 1/2 in Orifice, Lever Operated Actuator, 3-1/4 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Brass Stem and PTFE Seat Trim, Import

Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Threaded ends comply with ANSI B1.20.1.

Product Details

Webstone, H-40614, Ball Valve, Standard, Series: Pro-Pal® 4061, 1 in Nominal, IPS End Style, 600 psig WOG Pressure, 100 deg F, Full Port, Media: Gas/Oil/Water, 1/2 in Orifice, Lever Operated Actuator, 3-1/4 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Brass Stem and PTFE Seat Trim, Import

Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Threaded ends comply with ANSI B1.20.1.

Attributes

Ball Material: HCP Brass
Body Material: Forged Brass
Connection Type: IPS
Country Of Origin: China
Domestic/Import: Import
Inlet to Outlet Length: 3-1/4 in
Media: Gas/Oil/Water
Nominal Size: 1 in
Operator Type: Lever Operated
Orifice Size: 1/2 in
Port Type: Full
Pressure Rating: 600 psig WOG
Series: Pro-Pal® 4061
Softgoods Material: PTFE
Temperature Rating: 100 deg F
Top to Inlet Center: 2-5/8 in
Trim Material: Brass Stem and PTFE Seat
Type: Standard

Features

  • Full port forged brass ball valve with hi-flow hose drain reversible handle and adjustable packing gland
  • Eliminate assemblies needed to isolate and drain any portion of a piped system
  • Replace four component
  • Eliminate three leak path
  • EPDM washer
  • Compact design
  • Blow-Out proof stem
  • Guaranteed for life
  • Saves 27 minutes of labor
  • Valves with the T-flow adjustable flow path may be quickly and easily reconfigured to drain from either side of the ball
