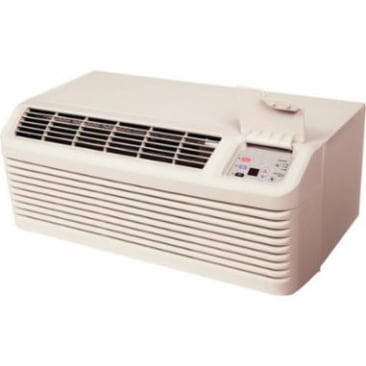

AMANA PTC153G50AXXX PTAC CHASSIS 15KBTU COOL 5.0KW HEAT
MFR Part #: PTC153G50AXXX
SKU #: 1243749
Brand: Amana
UPC: 400050346064
Amana® PTC153G50AXXX Package Terminal Air Conditioner, 15000 Btu/hr Cooling BTU, 208 to 230 VAC
AHRI Certified, C/US ETL intertek Listed, ISO 9001, ISO 14001 Certified
Product Details
Attributes
Features
Resources
Amana® Package Terminal Air Conditioner, Series: PTC, 15000 Btu/hr Cooling BTU Rating, 208 to 230 VAC, 7 A, 23.9 A Electric Heater, 1500 W Wattage, 60 Hz, 1 ph, Hermetically Sealed Rotary Compressor, 10 EER Rating, R-410A Refrigerant, 25 A Electric Heater Fuse Rating
Amperage Rating:7 A, 23.9 A Electric Heater
Compressor Type:Hermetically Sealed Rotary
Cooling BTU Rating:15000 Btu/hr
EER Rating:10
Frequency Rating:60 Hz
Fuse Rating:25 A Electric Heater
Phase:1 ph
Refrigerant Type:R-410A
Series:PTC
Voltage Rating:208 to 230 VAC
Wattage:1500 W
- Design Series (G)
- 5 kW electric heater
- Quiet operation
- Increased dehumidification capacity
- 100% run-tested at our plant in Fayetteville, TN for leaks
- 7-5/8 in D unit front, one of the shallowest silhouettes in the industry today
- Removable condenser shroud allows easy access to enable regular cleaning of coils
- Easy pull-out filters that are washable and easy to maintain
- Filter drier for sealed system refrigerant
- Seven-button touch pad provides complete control to guests for in-room comfort while maintaining energy efficiency
- Digismart front desk control and energy management software
- Room freeze protection is activated when the unit senses temperatures of 40 deg F or below
- Versatile-style that blends into any rooms color scheme and decor
- Easy to service with on-board led diagnostics
- Remote temperature sensing for guest climate control
- Extended heat pump heating down to as low as 24 deg F outdoor ambient temperature
- Zero floor clearance allows unit to be installed flush to a finished floor
- 30 sec fan-off delay
- Compressor lock-in prevents compressor short-cycling
- Constant fan mode
Product Details
Amana® Package Terminal Air Conditioner, Series: PTC, 15000 Btu/hr Cooling BTU Rating, 208 to 230 VAC, 7 A, 23.9 A Electric Heater, 1500 W Wattage, 60 Hz, 1 ph, Hermetically Sealed Rotary Compressor, 10 EER Rating, R-410A Refrigerant, 25 A Electric Heater Fuse Rating
Attributes
Amperage Rating: 7 A, 23.9 A Electric Heater
Compressor Type: Hermetically Sealed Rotary
Cooling BTU Rating: 15000 Btu/hr
EER Rating: 10
Frequency Rating: 60 Hz
Fuse Rating: 25 A Electric Heater
Phase: 1 ph
Refrigerant Type: R-410A
Series: PTC
Voltage Rating: 208 to 230 VAC
Wattage: 1500 W
Features
- Design Series (G)
- 5 kW electric heater
- Quiet operation
- Increased dehumidification capacity
- 100% run-tested at our plant in Fayetteville, TN for leaks
- 7-5/8 in D unit front, one of the shallowest silhouettes in the industry today
- Removable condenser shroud allows easy access to enable regular cleaning of coils
- Easy pull-out filters that are washable and easy to maintain
- Filter drier for sealed system refrigerant
- Seven-button touch pad provides complete control to guests for in-room comfort while maintaining energy efficiency
- Digismart front desk control and energy management software
- Room freeze protection is activated when the unit senses temperatures of 40 deg F or below
- Versatile-style that blends into any rooms color scheme and decor
- Easy to service with on-board led diagnostics
- Remote temperature sensing for guest climate control
- Extended heat pump heating down to as low as 24 deg F outdoor ambient temperature
- Zero floor clearance allows unit to be installed flush to a finished floor
- 30 sec fan-off delay
- Compressor lock-in prevents compressor short-cycling
- Constant fan mode
