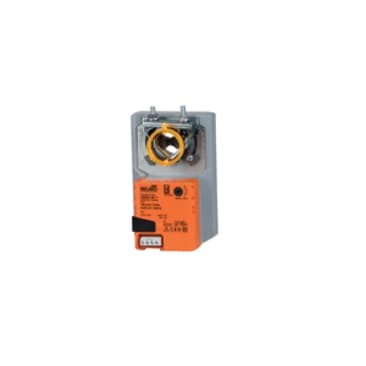

BELIMO AMB24-SR-T N4 4 MDLTNG CTR NON SPRG RTRN 24V ACTUATOR
Product Details
Attributes
Features
Resources
BELIMO® Non-Spring return Damper Actuator, Series: AMB, 24 VAC/VDC, 50/60 Hz, 5 VA, Electrical Connection: Screw Terminal, Timing Range: 95 s, Plastic, 180 in-lb Torque, Input Impedance: 100 kOhm, Noise Level: 45 dB, -22 to 122 deg F, IP20, NEMA 1 Enclosure, Humidity Rating: 95 %, 3.46 in H x 2.49 in D, Configuration: SPDT, Control Type: Modulating, Direct Mounting, Power Consumption: 0.4 W, 2 W, Rotation Angle: 95 deg, Round Shaft, 0.5 to 1.05 in Shaft
- Maintenance-free servicing
- Reflective visual indicator position indication
- The actuator is not provided with and does not require any limit switches
- The anti-rotation strap supplied with the actuator will prevent lateral movement
- Electronically protected against overload
- The AMB(X) Series provides 95 deg of rotation and a visual indicator indicates position of the actuator
- When reaching the damper or actuator end position, the actuator automatically stops
- Selectable with switch 0/1 direction of motion motor
- The gears can be manually disengaged with a button on the actuator cover
- Power consumption is reduced in holding mode
- External pushbutton manual override
Product Details
BELIMO® Non-Spring return Damper Actuator, Series: AMB, 24 VAC/VDC, 50/60 Hz, 5 VA, Electrical Connection: Screw Terminal, Timing Range: 95 s, Plastic, 180 in-lb Torque, Input Impedance: 100 kOhm, Noise Level: 45 dB, -22 to 122 deg F, IP20, NEMA 1 Enclosure, Humidity Rating: 95 %, 3.46 in H x 2.49 in D, Configuration: SPDT, Control Type: Modulating, Direct Mounting, Power Consumption: 0.4 W, 2 W, Rotation Angle: 95 deg, Round Shaft, 0.5 to 1.05 in Shaft
Attributes
Features
- Maintenance-free servicing
- Reflective visual indicator position indication
- The actuator is not provided with and does not require any limit switches
- The anti-rotation strap supplied with the actuator will prevent lateral movement
- Electronically protected against overload
- The AMB(X) Series provides 95 deg of rotation and a visual indicator indicates position of the actuator
- When reaching the damper or actuator end position, the actuator automatically stops
- Selectable with switch 0/1 direction of motion motor
- The gears can be manually disengaged with a button on the actuator cover
- Power consumption is reduced in holding mode
- External pushbutton manual override
