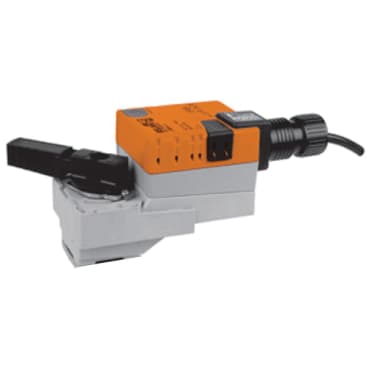

BELIMO LRB24-3-S 24VAC ON/OFF W/END SWITCH NON SPRING RETURN
Product Details
Attributes
Features
Resources
BELIMO® Valve Actuator, 24 VAC/VDC, 50/60 Hz, VA Rating: 2.5 VA, SPDT, 3 ft 18 AWG Plenum-Rated Cable with 1/2 in Conduit Electrical Connection, 0.2 W Holding, 1.5 W Running Power Consumption, 90 s Timing, 600 Ohm Input, 35 dBA Noise Level, NEMA 2, IP42 Enclosure, 90 deg Rotation Angle, On/Off, Floating Point Signal, Maintenance-Free Service, Plastic/Steel Body, Finish: Galvanized, -40 to 176 deg F, 9.41 in L x 3.22 in W
- On/off, floating point control
- Electronic throughout 0 to 90 deg rotation overload protection, 90 deg angle of rotation
- Reversible with built-in switch motor direction of rotation
- Integrated into handle position indication
- External push button manual override
- For use with two way characterized control valves (1/2 to 1-1/4 in) and two way characterized control valves (1/2 to 1 in)
Product Details
BELIMO® Valve Actuator, 24 VAC/VDC, 50/60 Hz, VA Rating: 2.5 VA, SPDT, 3 ft 18 AWG Plenum-Rated Cable with 1/2 in Conduit Electrical Connection, 0.2 W Holding, 1.5 W Running Power Consumption, 90 s Timing, 600 Ohm Input, 35 dBA Noise Level, NEMA 2, IP42 Enclosure, 90 deg Rotation Angle, On/Off, Floating Point Signal, Maintenance-Free Service, Plastic/Steel Body, Finish: Galvanized, -40 to 176 deg F, 9.41 in L x 3.22 in W
Attributes
Features
- On/off, floating point control
- Electronic throughout 0 to 90 deg rotation overload protection, 90 deg angle of rotation
- Reversible with built-in switch motor direction of rotation
- Integrated into handle position indication
- External push button manual override
- For use with two way characterized control valves (1/2 to 1-1/4 in) and two way characterized control valves (1/2 to 1 in)
