RAB 080841 Image 1

RAB 080841 AWL1S-LED15-B-VK-BRZ-DIM-PC

MFR Part #: 080841
SKU #: 1244723
Brand: RAB® Design Lighting
UPC: 61184808417

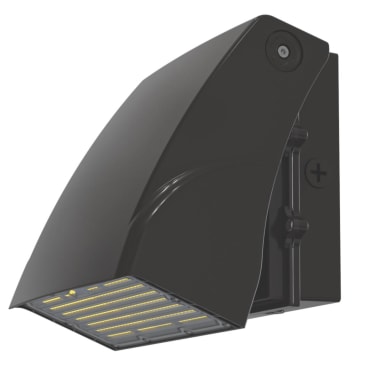

RAB® 080841 AWLS Wallpack, LED Lamp, 14 W Fixture, 120 to 277 V, Bronze Housing
This product may be subject to ecological fees.
Approved for Wet Locations
IP65 Rated | DLC Standard | cULus Listed

RAB®, 080841, Wallpack, Series: AWLS, 120 to 277 V, 14 W Fixture, LED Lamp, 124 Lumens/W Light Output, 100000 hr Average Life, 3000/4000/5000 K Color Temperature, >70 CRI, 0 to 10 V Dimming Ballast, Clear Polycarbonate Lens, 1761 Lumens, IP65 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 7.40 in H x 7.15 in W x 4.57 in D Dimensions

The AWLS-LED select series wall light is a colour selectable fixture with an adjustable head to direct light wherever needed. Ideal for use in perimeter lighting, condos, schools, and town houses

Product Details

RAB®, 080841, Wallpack, Series: AWLS, 120 to 277 V, 14 W Fixture, LED Lamp, 124 Lumens/W Light Output, 100000 hr Average Life, 3000/4000/5000 K Color Temperature, >70 CRI, 0 to 10 V Dimming Ballast, Clear Polycarbonate Lens, 1761 Lumens, IP65 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 7.40 in H x 7.15 in W x 4.57 in D Dimensions

The AWLS-LED select series wall light is a colour selectable fixture with an adjustable head to direct light wherever needed. Ideal for use in perimeter lighting, condos, schools, and town houses

Attributes

Color Temperature: 3000/4000/5000 K
Country Of Origin: China
Fixture Wattage: 14 W
Lumens: 1761 Lumens
Mounting Type: Wall
Average Life: 100000 hr
Ballast Type: 0 to 10 V Dimming
Color Rendering Index (CRI): >70
Dimensions: 7.40 in H x 7.15 in W x 4.57 in D
Efficacy: 124 lm/W
Enclosure Type: IP65
Fixture Material: Die Cast Aluminum
Housing Finish: Bronze
Housing Material: Die Cast Aluminum
Lamp Type: LED
LED Life: 100000 hrs
Lens Type: Clear Polycarbonate
Light Output: 124 Lumens/W
Power Factor: >0.9
Series: AWLS
Total Harmonic Distortion: .15 %
Voltage Rating: 120 to 277 V

Features

  • Colour Selectable Fixture Installer can choose between 3000K/4000K/5000K through a switch inside the housing
  • AWL3S-LED120A100 is a lumen adjustable unit with 3 settings at 120W, 110W and 100W
  • Adjustable head to direct light wherever needed
  • Hinge Assembly allows Installer to use both hands for wiring
  • Level bubble for quick alignment
  • CCT Selectable with an adjustable head

Resources

Instruction/Installation Manual
Specification Sheet
