4IN LV REMODEL HOUSING W/MAG. TRANS ELITE BL4R-50-M-AT-W
Product Details
Attributes
Features
Resources

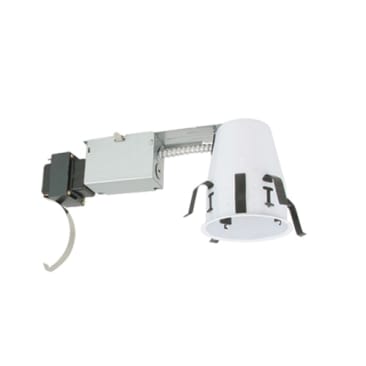

Elite Lighting Non-IC Housing, Air-Shut Low Voltage Miniature Remodel Round, 120 V AC, 4 in Ceiling Opening, Incandescent Lamp, 50 W Lamp, 1 Lamps, Non-IC Insulation, Ceiling Mounting, For Use With: B1407, B1416 Adjustable Wall Wash, B1402, B1415, B1463 Reflector and B1464, B1468, B1478, B1484 Baffle, B1427 Illuminator and IC/Non-IC Rated Downlight, 4-3/8 in Diameter, 5-1/2 in Height
Small aperture low voltage, thermally protected remodel housing. For fast and easy installation in existing plaster or mechanical ceilings from 1/2 to 1-3/8 in THK. 4 remodel clips are easily retractable for fixture removal if necessary. Accommodates up to 75 W MR16 lamps. Junction box is provided with eight 1/2 in KOs and four Romex knockouts with strain relief.
- 5-1/2 in H allows use in 2 x 6 in joist construction
- Integral low voltage magnetic transformer to prolong lamp life and increase lighting quality
- Thermally protected Non-IC housing
- Can be installed from below the ceiling
- 4 pre-installed spring clips which secure the housing firmly into ceiling to accommodate different ceiling thicknesses from 1/2 to 1-3/8 in
- Dependable, favorable design and effortless installation
- Unit clips through 4-1/4 in ceiling opening
Product Details
Elite Lighting Non-IC Housing, Air-Shut Low Voltage Miniature Remodel Round, 120 V AC, 4 in Ceiling Opening, Incandescent Lamp, 50 W Lamp, 1 Lamps, Non-IC Insulation, Ceiling Mounting, For Use With: B1407, B1416 Adjustable Wall Wash, B1402, B1415, B1463 Reflector and B1464, B1468, B1478, B1484 Baffle, B1427 Illuminator and IC/Non-IC Rated Downlight, 4-3/8 in Diameter, 5-1/2 in Height
Small aperture low voltage, thermally protected remodel housing. For fast and easy installation in existing plaster or mechanical ceilings from 1/2 to 1-3/8 in THK. 4 remodel clips are easily retractable for fixture removal if necessary. Accommodates up to 75 W MR16 lamps. Junction box is provided with eight 1/2 in KOs and four Romex knockouts with strain relief.
Attributes
Features
- 5-1/2 in H allows use in 2 x 6 in joist construction
- Integral low voltage magnetic transformer to prolong lamp life and increase lighting quality
- Thermally protected Non-IC housing
- Can be installed from below the ceiling
- 4 pre-installed spring clips which secure the housing firmly into ceiling to accommodate different ceiling thicknesses from 1/2 to 1-3/8 in
- Dependable, favorable design and effortless installation
- Unit clips through 4-1/4 in ceiling opening
