HUBBELL MHS-Y30LU-5K-W-BZ Image 1
HUBBELL MHS-Y30LU-5K-W-BZ Image 2
content loaded
HUBBELL MHS-Y30LU-5K-W-BZ Image 1

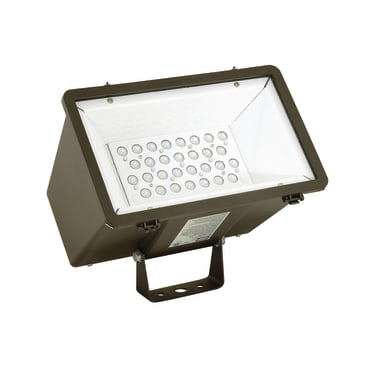

HUBBELL MHS-Y-30LU-5K-W-BZ MINILIGHTER FLOOD LIGHT 30LED BRZ

MFR Part #: MHS-Y30LU-5K-W-BZ
SKU #: 1111251
Brand: Hubbell® Outdoor Lighting
UPC: 785988016884
EXO Miniliter® MHS-Y30LU-5K-W-BZ Wide Beam Floodlight, (30) LED Lamp, 70 W Fixture, 120 to 277 VAC, Powder Coated Housing
5 years
This product may be subject to ecological fees.
Damp/Wet Locations, Sign, Facade, Area, Accent, General Security Lighting and Dusk-to-Dawn Applications
ARRA Compliant | Buy American Act Compliant | UL 1598 | CSA 22.2 File No. 250.0-00 | cCSAus Certified | DLC Listed | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

EXO Miniliter® Floodlight, Wide Beam, Series: MHS, 120 to 277 VAC, 70 W Fixture, 0.26 to 0.56 A, LED Lamp, 30 Lamps, 5000 K Color Temperature, 70 CRI, Tempered Glass Lens, 7707 Lumens, NEMA 6H x 6V Enclosure, Yoke Mounting, Die Cast Aluminum Housing Material, Powder Coated Housing Finish, 12 in H x 16-1/4 in W x 14-1/2 in D Dimensions

The original compact 400 W flood Improved over the years to version Five. Compact, wide beam and with tool-free entry for simple servicing. Yoke and knuckle mounting is offered.

Product Details

EXO Miniliter® Floodlight, Wide Beam, Series: MHS, 120 to 277 VAC, 70 W Fixture, 0.26 to 0.56 A, LED Lamp, 30 Lamps, 5000 K Color Temperature, 70 CRI, Tempered Glass Lens, 7707 Lumens, NEMA 6H x 6V Enclosure, Yoke Mounting, Die Cast Aluminum Housing Material, Powder Coated Housing Finish, 12 in H x 16-1/4 in W x 14-1/2 in D Dimensions

The original compact 400 W flood Improved over the years to version Five. Compact, wide beam and with tool-free entry for simple servicing. Yoke and knuckle mounting is offered.

Attributes

Amperage Rating: 0.26 to 0.56 A
Color Rendering Index (CRI): 70
Color Temperature: 5000 K
Country Of Origin: US
Dimensions: 12 in H x 16-1/4 in W x 14-1/2 in D
Enclosure Type: NEMA 6H x 6V
Fixture Wattage: 70 W
Housing Finish: Powder Coated
Housing Material: Die Cast Aluminum
Lamp Type: LED
Lens Type: Tempered Glass
Lumens: 7707 Lumens
Mounting Type: Yoke
Number of Lamps: 30
Series: MHS
Type: Wide Beam
Voltage Rating: 120 to 277 VAC

Features

  • Mounting choices of steel yoke or cast aluminum 2-3/8 in OD slipfitter
  • Tool free entry for lamping or maintenance, silicone gasket provides seal
  • Steel yoke or cast aluminum 2-3/8 in knuckle slipfitter mounting
  • Wide, uniform beam for illumination of signs, facades and large areas
  • Coverage is 4-times set back distance
  • 0.56 A at 120 VAC, 0.26 A at 277 VAC

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
Warranty Information
