LOADTRACK WIRED AC/DC SURGE SUPPRESSN TPS TK-LT120-15A-DIN2
MFR Part #: TK-LT120-15A-DIN2
SKU #: 1057558
Brand: Total Protection Solutions™
UPC: 400005181313
Total Protection Solutions™ LoadTrack™ TK-LT120-15A-DIN2 LT Series Surge Protection Device, 15 A, 25/50 V AC/24/65 V DC, 47 to 64 Hz, 100 kA SCCR
For protecting the PLC's, building management systems, OEM/systems integration controls and other microprocessor-based loads
ETL Recognized Under UL 1449/1283 4th Edition as a Type 4 SPD | cETL Listed
Product Details
Attributes
Features
Resources

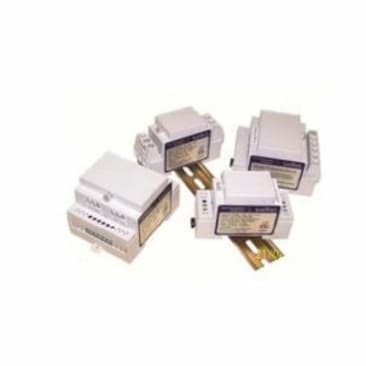

Total Protection Solutions™ LoadTrack™ Surge Protection Device, Series: LT Series, 15 A, 25/50 V AC/24/65 V DC Electrical Rating, 47 to 64 Hz Frequency, 100 kA Short Circuit, 20 kA/ph Peak Surge Current, Modes of Protection: L-N/L-G/N-G, <1 ns Response, Status Indicating Light Indicator, DIN Rail Mounting, Polycarbonate, 3.94 in L x 1.4 in W x 2.28 in H Dimensions
Dimensions:3.94 in L x 1.4 in W x 2.28 in H
Electrical Ratings:15 A, 25/50 V AC/24/65 V DC
Frequency Rating:47 to 64 Hz
Indicator Type:Status Indicating Light
Material:Polycarbonate
Modes of Protection:L-N/L-G/N-G
Mounting Type:DIN Rail
Peak Surge Current:20 kA/ph
Response Time:<1 ns
Series:LT Series
Short Circuit Current Rating:100 kA
- Provides surge protection against harmful transient voltages that exceed the nominal operating voltage of AC and DC critical dedicated control loads
- Compact, fail-safe design allows flexible installation into electrical/control panels
- Dual component-level fusing (CLF) standard
- Enhanced transient filter (ETF) standard
- Reduce lockups, glitches and reprogramming issues
- Ultra compact, fail-safe design with dual component-level fusing design
- 100 kA IC short-circuit current rating with a 15 A max Class-T fuse and 5 kA IC with a 15 A breaker
- Hard-wired via box terminals connection method, #22 to 12 AWG
- 44 V at L-N mode, A1 ring wave/2 kV/67 A/180 deg phase angle
- 97 V at L-G mode, A1 ring wave/2 kV/67 A/180 deg phase angle
- 49 V at N-G mode, A1 ring wave/2 kV/67 A/180 deg phase angle
- 115 VAC at L-N mode, A3 ring wave/6 kV/200 A/180 deg phase angle
- 145 V at L-G mode, A3 ring wave/6 kV/200 A/180 deg phase angle
- 117 VAC at N-G mode, A3 ring wave/6 kV/200 A/180 deg phase angle
- 197 V at L-N mode, B3/C1 ring wave/6 kV/3 kA/90 deg phase angle
- 225 V at L-G mode, B3/C1 ring wave/6 kV/3 kA/90 deg phase angle
- 193 V at N-G mode, B3/C1 ring wave/6 kV/3 kA/90 deg phase angle
- -40 to 185 deg F operating temperature
