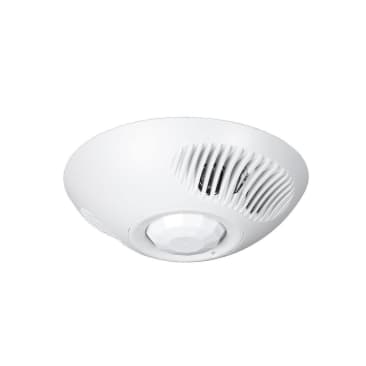

HUBBELL OMNIDT2000 Image 1

OMNI DUAL TECH CEILING SENSOR PIR/US WH HUBBELL OMNIDT2000

MFR Part #: OMNIDT2000
SKU #: 1109908
Brand: Hubbell Control Solutions
UPC: 640181402868
NX Lighting Controls OMNIDT2000 Dual Technology Low Voltage Ceiling Mount Occupancy Sensor, 24 V DC, Dual Technology/Passive Infrared/Ultrasonic Sensor, 2000 sq-ft Coverage, Ceiling Mounting
5 year limited
Commercial, Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Cafeterias, Classrooms, Large Conference Halls, Conference Rooms, Labs, Libraries, Open Offices, Show Floors, Training Rooms, Break Rooms, Classrooms-Small, Closets, Meeting Rooms, Private Offices and Warehouse Applications
California Title 24 Compliant | cUL Listed | RoHS Compliant | UL Listed | PROP65: This product can expose you to chemicals including - lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

NX Lighting Controls, OMNIDT2000, Ceiling Mount Occupancy Sensor, Dual Technology Low Voltage, 24 V DC, 33 mA, Dual Technology/Passive Infrared/Ultrasonic Sensor, 2000 sq-ft Coverage, 8 to 30 min Time Delay, LED Lamp, 32 kHz Response, Ceiling Mounting, 0 to 40 deg C, ABS, White, 4-1/2 x 4-1/2 x 1-1/2 in Dimensions

The OMNI® DT combines ultrasonic (US) and passive infrared (PIR) technologies to turn lighting ON and OFF based on occupancy. This dual technology provides accurate turn-ons while virtually eliminating false-offs. This sensor features Current® controls patented IntelliDAPT® technology, which makes all the sensor adjustments automatically. Throughout the products lifespan, IntelliDAPT® software analyzes the controlled area and makes digital adjustments to sensitivity and timer settings. Occupancy sensors with IntelliDAPT® technology provide a maintenance-free install and forget operation.

Product Details

NX Lighting Controls, OMNIDT2000, Ceiling Mount Occupancy Sensor, Dual Technology Low Voltage, 24 V DC, 33 mA, Dual Technology/Passive Infrared/Ultrasonic Sensor, 2000 sq-ft Coverage, 8 to 30 min Time Delay, LED Lamp, 32 kHz Response, Ceiling Mounting, 0 to 40 deg C, ABS, White, 4-1/2 x 4-1/2 x 1-1/2 in Dimensions

The OMNI® DT combines ultrasonic (US) and passive infrared (PIR) technologies to turn lighting ON and OFF based on occupancy. This dual technology provides accurate turn-ons while virtually eliminating false-offs. This sensor features Current® controls patented IntelliDAPT® technology, which makes all the sensor adjustments automatically. Throughout the products lifespan, IntelliDAPT® software analyzes the controlled area and makes digital adjustments to sensitivity and timer settings. Occupancy sensors with IntelliDAPT® technology provide a maintenance-free install and forget operation.

Attributes

Amperage Rating: 33 mA
Color: White
Coverage: 2000 sq-ft
Dimensions: 4-1/2 x 4-1/2 x 1-1/2 in
Lamp Type: LED
Material: ABS
Response Frequency: 32 kHz
Sensor Type: Dual Technology/Passive Infrared/Ultrasonic
Temperature Rating: 0 to 40 deg C
Time Delay: 8 to 30 min
Type: Dual Technology Low Voltage
Voltage Rating: 24 V DC

Features

  • IntelliDAPT self-adaptive technology
  • Non-volatile memory for sensor settings
  • Optional relay and photocell control
  • Optional Quick to Install (QTI) connector
