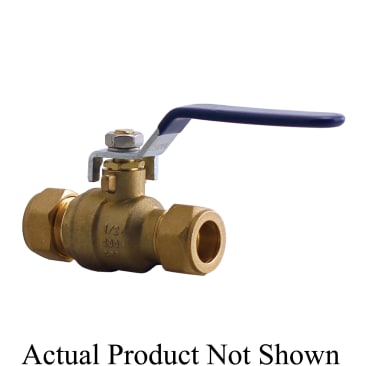

BOSHART 082CP-07NL Image 1

BOSHART 082CP-07NL 3/4 COMP X COMP BALL VLV W/DRAIN PORT

MFR Part #: 082CP-07NL
SKU #: 1239606
Brand: Boshart Industries
UPC: 777808440740
Boshart Industries 082CP-07NL 082CP-NL Series Ball Valve With Drain, 3/4 in Nominal, Compression End Style, Forged Brass Body, Standard Port, EPDM/PTFE/Steel Softgoods, Import
Industrial, Irrigation, Plumbing, Pool and Spa Applications
cUPC IGC 157 | NSF/ANSI 61/372 | SAE J512 | CSA Approved

Boshart Industries Ball Valve, Lead Free, Series: 082CP-NL Series, 3/4 in Nominal, Compression End Style, 200 psi WOG Pressure, Up to 300 deg F, Standard Port, Media: Gas/Oil/Water, 0.79 in Orifice, Rubber Grip Handle Actuator, Polished Chrome Brass Ball, 3.74 in Inlet to Outlet Length, 2.72 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, EPDM/PTFE/Steel Softgoods, Import

Boshart Industries Brass Ball Valves with a drain are perfect for applications where water needs to be drained from the pipe after the valve. When installing one of these valves make sure the drain is not installed on the supply side of the valve.

Product Details

Boshart Industries Ball Valve, Lead Free, Series: 082CP-NL Series, 3/4 in Nominal, Compression End Style, 200 psi WOG Pressure, Up to 300 deg F, Standard Port, Media: Gas/Oil/Water, 0.79 in Orifice, Rubber Grip Handle Actuator, Polished Chrome Brass Ball, 3.74 in Inlet to Outlet Length, 2.72 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, EPDM/PTFE/Steel Softgoods, Import

Boshart Industries Brass Ball Valves with a drain are perfect for applications where water needs to be drained from the pipe after the valve. When installing one of these valves make sure the drain is not installed on the supply side of the valve.

Attributes

Connection Type: Compression
Country Of Origin: China
Inlet to Outlet Length: 3.74 in
Nominal Size: 3/4 in
Pressure Rating: 200 psi WOG
Ball Material: Polished Chrome Brass
Body Material: Forged Brass
Domestic/Import: Import
Media: Gas/Oil/Water
Orifice Size: .79 in
Port Type: Standard
Softgoods Material: EPDM/PTFE/Steel
Top to Inlet Center: 2.72 in
Trim Material: Brass/PTFE

Features

  • 200 psi WOG non-shock - WOG pressure rating based on ambient temperature
  • Integral drain port to allow system draining
  • Blow-out proof stem
  • Zinc plated handle with blue plastic sleeve
  • No lead <0.25% pb by weighted average
  • Brass stem/sleeve/PTFE seat
  • EPDM O-ring/PTFE stem packing/steel washer

Resources

Specification Sheet
