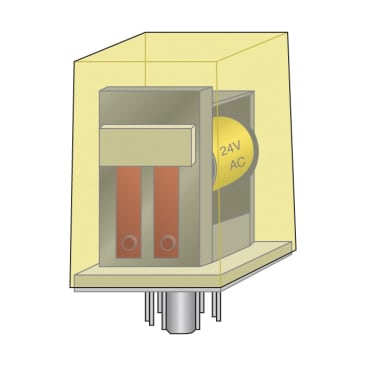

HEATLINK 45012 RELAY PUMP 24 VAC DPDT
MFR Part #: 45012
SKU #: 1059083
Brand: HeatLink®
UPC: 627998001507
HeatLink® 45012 Pump Relay With Enclosure, 8 Pin, 2 Form C DPDT Contact, 24 VAC V Coil, Import
For use with pump and/or boiler control
CSA Certified | CE Certified | UL Listed (Enclosure)
Product Details
Attributes
Features
Resources
HeatLink® Pump Relay, 50/60 Hz, 24 VAC Coil, 2 Form C DPDT, 10 A Resistive, 7.5 A Inductive at 110 V AC/7.5 A Resistive, 5 A Inductive at 220 V AC Contact, 8 Pins, 2 Pole, -30 to 70 deg F, 6-5/8 in W x 4-1/16 in D x 6-1/4 in H, Import
Coil Voltage:24 V AC
Contact Form:2 Form C DPDT
Contact Rating:10 A Resistive, 7.5 A Inductive at 110 V AC/7.5 A Resistive, 5 A Inductive at 220 V AC
Dimensions:6-5/8 in W x 4-1/16 in D x 6-1/4 in H
Domestic/Import:Import
Frequency Rating:50/60 Hz
Number of Pins:8
Number of Poles:2
Temperature Rating:-30 to 70 deg F
- Double pole double throw relay
- Contacts: 10 A resistive, 7.5 A inductive at 110 VAC, 1/4 hp, 7.5 A resistive, 5.0 A inductive at 220 VAC, 1/3 hp
Product Details
HeatLink® Pump Relay, 50/60 Hz, 24 VAC Coil, 2 Form C DPDT, 10 A Resistive, 7.5 A Inductive at 110 V AC/7.5 A Resistive, 5 A Inductive at 220 V AC Contact, 8 Pins, 2 Pole, -30 to 70 deg F, 6-5/8 in W x 4-1/16 in D x 6-1/4 in H, Import
Attributes
Coil Voltage: 24 V AC
Contact Form: 2 Form C DPDT
Contact Rating: 10 A Resistive, 7.5 A Inductive at 110 V AC/7.5 A Resistive, 5 A Inductive at 220 V AC
Dimensions: 6-5/8 in W x 4-1/16 in D x 6-1/4 in H
Domestic/Import: Import
Frequency Rating: 50/60 Hz
Number of Pins: 8
Number of Poles: 2
Temperature Rating: -30 to 70 deg F
Features
- Double pole double throw relay
- Contacts: 10 A resistive, 7.5 A inductive at 110 VAC, 1/4 hp, 7.5 A resistive, 5.0 A inductive at 220 VAC, 1/3 hp
