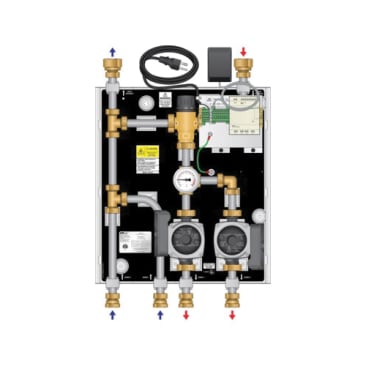

HEATLINK TMP085DP TMP 85MBH DUAL 3-WAY PUMP MIXING PANEL
Product Details
Attributes
Features
Resources
HeatLink® Mixing Panel, Dual Pump, Series: TMP, 110 to 140 deg F Control, 85 MBtu/hr Boiler Output, 10 A Full Load, Steel, Powder Coated, 16-1/4 in W x 7-3/4 in D x 18-1/4 in H Dimensions, Import
The TMP 3-Way Mixing Panel's primary application is as a single zone mixing device where there are no flow requirements in the primary loop. Intended to be used with DHW tanks as a heat source, the PLC is programmed with a 24 hr timer for potable applications. The TMP085DP not only allows for higher output, but it is also a 2-zone panel. So even with a DHW heat source, you can now have two radiant floor zones. When not used with a DHW tank as a heat source, secondary zoning downstream of the panel is possible.
- These panels can also be used as subpanels
