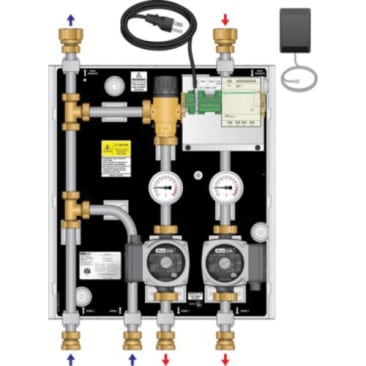

HEATLINK TMP200DT TMP 200 MBH 2 TEMPERATURE PANEL

HeatLink® 2-Temperature 3-Way Mixing Panel, 110 VAC, 2 A, 7 gpm Flow Rate, Steel, 100 to 140 deg F, 16-1/4 in W x 18-1/4 in H x 7-3/4 in D, 0 to 16 ft Head

The TMP 3-way mixing panel's primary application is as a 1-zone mixing device where there are no flow requirements in the primary loop. Intended to be used with DHW tanks as a heat source, the pump is activated once every 24 hr, for 15 min, to ensure that potable water in the piping is not stagnant. At this time, a DHW priority option for these panels is not available. When the panel receives a call for heat, the pump is activated and the thermostatic control head in the 3-way mixing valve will automatically regulate the water temperature in the secondary circuit. When not used with a DHW tank as a heat source, secondary zoning downstream of the panel is possible. The TMP200DT is a dual temperature panel. The low temperature output is the same as the TMP070, but it also has a high-temperature pump, for secondary high-temperature applications such a as fan coil or baseboard.
