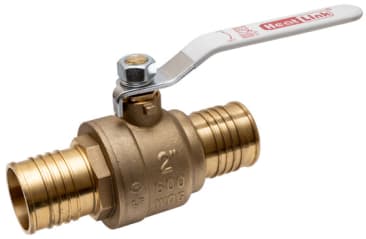

HEATLINK 23354NL 2 PEX FULL-PORT NO LEAD BALL VALVE
MFR Part #: 23354NL
SKU #: 1245224
Brand: HeatLink®
UPC: 62799801738
HeatLink® 23354NL Ball Valve, 2 in, PEX, Brass, 100 psi
Limited
ANSI Z1157/IAPMO | cUPC Listed | IAPMO Certified | NSF/ANSI 14 | NSF/ANSI 372 | NSF/ANSI 61 | UPC/NPCC Listed
Product Details
Attributes
Features
Resources
HeatLink® Ball Valve, 2 in Nominal, PEX Connection, Full Port, 100 psi, Water Media, 2.44 in Orifice, 5.57 in Inlet to Outlet Length, 2.63 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM F1807, Brass Body, PTFE Seat, Brass Stem, Steel Trim, PTFE Packing, Steel Handle, Stainless Steel Ball, NBR Softgoods, Lead-Free, 180 deg F, 3.86 in L x 8.59 in W
Connection Type:
PEX
Country Of Origin:
China
Nominal Size:
2 in
Operator Type:
Lever Handle
Ball Material:
Stainless Steel
Body Material:
Brass
Dimensions:
3.86 in L x 8.59 in W
Handle Material:
Steel
Inlet to Outlet Length:
5.57 in
Lead-Free/Contains Lead:
Lead-Free
Material Standard:
ASTM F1807
Media:
Water
Orifice Size:
2.44 in
Packing Material:
PTFE
Port Type:
Full
Pressure Rating:
100 psi
Seat Material:
PTFE
Softgoods Material:
NBR
Stem Material:
Brass
Temperature Rating:
180 deg F
Top to Inlet Center:
2.63 in
Trim Material:
Steel
- Full port for maximum flow
- Lead-free brass for potable water compliance
- Resistance to dezincification
- Corrosion resistance to chemical found in water and gas
- High-strength brass for long-term reliability
- F1807 Pex connections for use with the HeatLink® press system
Product Details
HeatLink® Ball Valve, 2 in Nominal, PEX Connection, Full Port, 100 psi, Water Media, 2.44 in Orifice, 5.57 in Inlet to Outlet Length, 2.63 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM F1807, Brass Body, PTFE Seat, Brass Stem, Steel Trim, PTFE Packing, Steel Handle, Stainless Steel Ball, NBR Softgoods, Lead-Free, 180 deg F, 3.86 in L x 8.59 in W
Attributes
Connection Type: PEX
Country Of Origin: China
Nominal Size: 2 in
Operator Type: Lever Handle
Ball Material: Stainless Steel
Body Material: Brass
Dimensions: 3.86 in L x 8.59 in W
Handle Material: Steel
Inlet to Outlet Length: 5.57 in
Lead-Free/Contains Lead: Lead-Free
Material Standard: ASTM F1807
Media: Water
Orifice Size: 2.44 in
Packing Material: PTFE
Port Type: Full
Pressure Rating: 100 psi
Seat Material: PTFE
Softgoods Material: NBR
Stem Material: Brass
Temperature Rating: 180 deg F
Top to Inlet Center: 2.63 in
Trim Material: Steel
Features
- Full port for maximum flow
- Lead-free brass for potable water compliance
- Resistance to dezincification
- Corrosion resistance to chemical found in water and gas
- High-strength brass for long-term reliability
- F1807 Pex connections for use with the HeatLink® press system
