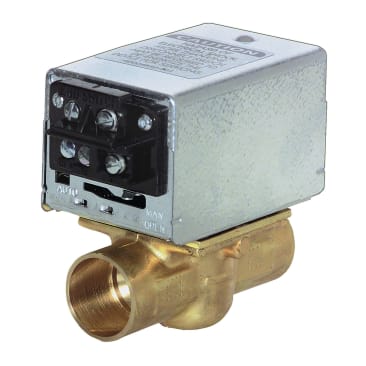

HONEYWELL V8043F1135/U 3/4 SWT ZONE VALVE NC WITH AUX SW
MFR Part #: V8043F1135/U
SKU #: 0863947
Brand: Honeywell Home
UPC: 085267131568
Honeywell Home V8043F1135/U 2-Way Straight-Through Zone Valve, 3/4 in, C, 125 psi Static, 3.5 Cv, 24 VAC, Import
End Switch Enclosure
Hydronic Control
CSA 1322 and UL MH11826
Product Details
Attributes
Features
Resources
Honeywell Home Zone Valve, 2-Way Straight-Through, Series: V8043, 3/4 in Nominal, C, 125 psi Static, 3.5 Cv, 24 VAC, 0.32 A, 50 to 200 deg F Water Temperature, 20 psi Differential, Screw Terminal Block, Brass, 3-1/2 in W x 2-3/8 in D x 4 in H, Import
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Connection Type:C
Country Of Origin:Hungary
Nominal Size:3/4 in
Number of Ways/Position:2-Way Straight-Through
Amperage Rating:.32 A
Coefficient of Volume:3.5 Cv
Differential:20 psi
Dimensions:3-1/2 in W x 2-3/8 in D x 4 in H
Domestic/Import:Import
Electrical Connections:Screw Terminal Block
Material:Brass
Pressure Rating:125 psi Static
Series:V8043
Voltage Rating:24 VAC
Water Temperature:50 to 200 deg F
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored
- All models may be installed without disassembling the valve
- Compact construction for easy installation
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
- Actuator motor may be replaced without removing the valve body or draining the system
- EPDM rubber packing
- Buna-N (NBR) rubber ball plug/ball/disc
- Brass seat and stainless steel stem
- Spring return to close valve action
- 7.7 VA power consumption
- 5 to 95% non-condensing relative humidity (RH)
- 15 sec nominal open
- 50/60 Hz frequency
- 125 deg F maximum ambient temperature
- Normally closed de-energized position
Product Details
Honeywell Home Zone Valve, 2-Way Straight-Through, Series: V8043, 3/4 in Nominal, C, 125 psi Static, 3.5 Cv, 24 VAC, 0.32 A, 50 to 200 deg F Water Temperature, 20 psi Differential, Screw Terminal Block, Brass, 3-1/2 in W x 2-3/8 in D x 4 in H, Import
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Attributes
Connection Type: C
Country Of Origin: Hungary
Nominal Size: 3/4 in
Number of Ways/Position: 2-Way Straight-Through
Amperage Rating: .32 A
Coefficient of Volume: 3.5 Cv
Differential: 20 psi
Dimensions: 3-1/2 in W x 2-3/8 in D x 4 in H
Domestic/Import: Import
Electrical Connections: Screw Terminal Block
Material: Brass
Pressure Rating: 125 psi Static
Series: V8043
Voltage Rating: 24 VAC
Water Temperature: 50 to 200 deg F
Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored
- All models may be installed without disassembling the valve
- Compact construction for easy installation
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
- Actuator motor may be replaced without removing the valve body or draining the system
- EPDM rubber packing
- Buna-N (NBR) rubber ball plug/ball/disc
- Brass seat and stainless steel stem
- Spring return to close valve action
- 7.7 VA power consumption
- 5 to 95% non-condensing relative humidity (RH)
- 15 sec nominal open
- 50/60 Hz frequency
- 125 deg F maximum ambient temperature
- Normally closed de-energized position
