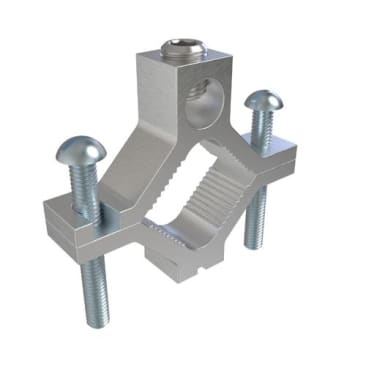

ILSCO AGC-2 250-6 PIPE SIZES 1-1/4 TO 2 PERMAGROUND ALUMINUM GROUND CLAMP CONDUCTOR
MFR Part #: AGC-2
SKU #: 1267235
Brand: ILSCO®
UPC: 783669000627
ILSCO® ClearChoice® AGC-2 Type AGC Dual Rated Grounding Clamp, 6 AWG to 250 kcmil Conductor, Aluminum
For grounding connector
UL 667P/467/E34440 | PROP65: it is not known to contain any chemicals associated with this regulation
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Grounding Clamp, Type AGC Dual Rated, 1-1/4 to 2 in Pipe, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, Aluminum, Clear Plated, 3-3/4 in L x 13/16 in W
Conductor Size:6 AWG to 250 kcmil
Conductor Type:Aluminum/Copper
Country Of Origin:Mexico
Dimensions:3-3/4 in L x 13/16 in W
Finish:Clear Plated
Material:Aluminum
Pipe Size:1-1/4 to 2 in
Type:Type AGC Dual Rated
- Clear plated provides low contact resistance
- Versatile - effectively grounds aluminum or copper conductors to copper water pipe, galvanized pipe or steel conduit
- Range taking - 3 sizes cover a range from 1/2 to 4 in pipe with a ground wire range of 14 AWG to 250 kcmil which reduces ventory
- SGC lay-in feature provides ease of installation for long ground wire runs
- Manufactured from high strength 6061-T6 aluminum alloy
- When using the AGC-1 with rebar the bottom half of connector must be verted
- Suitable for use with either copper or aluminum conductors
- Hex socket screw
- 1-1/4 in, 1-1/2 in, 2 in pipe
- 600 VAC voltage rating
Product Details
ILSCO® ClearChoice® Grounding Clamp, Type AGC Dual Rated, 1-1/4 to 2 in Pipe, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, Aluminum, Clear Plated, 3-3/4 in L x 13/16 in W
Attributes
Conductor Size: 6 AWG to 250 kcmil
Conductor Type: Aluminum/Copper
Country Of Origin: Mexico
Dimensions: 3-3/4 in L x 13/16 in W
Finish: Clear Plated
Material: Aluminum
Pipe Size: 1-1/4 to 2 in
Type: Type AGC Dual Rated
Features
- Clear plated provides low contact resistance
- Versatile - effectively grounds aluminum or copper conductors to copper water pipe, galvanized pipe or steel conduit
- Range taking - 3 sizes cover a range from 1/2 to 4 in pipe with a ground wire range of 14 AWG to 250 kcmil which reduces ventory
- SGC lay-in feature provides ease of installation for long ground wire runs
- Manufactured from high strength 6061-T6 aluminum alloy
- When using the AGC-1 with rebar the bottom half of connector must be verted
- Suitable for use with either copper or aluminum conductors
- Hex socket screw
- 1-1/4 in, 1-1/2 in, 2 in pipe
- 600 VAC voltage rating
