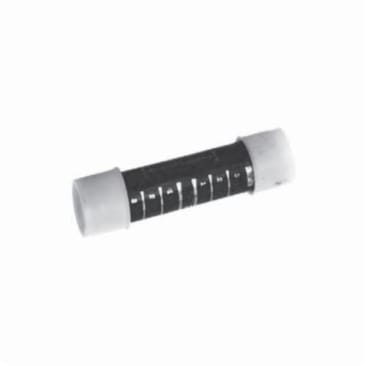

ILSCO PIK-22 INSULINKS
MFR Part #: PIK-22
SKU #: 0731770
Brand: ILSCO®
UPC: 783669732184
ILSCO® PIK-22 PIK Pre-Insulated Compression Sleeve With Anchoring Ring, 2 ACSR/2 to 1 AWG Stranded/2 AWG Solid ACSR/Copper Conductor, Die Code: BG, 5/8, 2-7/8 in L, Aluminum
Product Details
Attributes
Features
ILSCO® Compression Sleeve, Pre-Insulated, Series: PIK, ACSR/Copper Conductor, 2 ACSR/2 to 1 AWG Stranded/2 AWG Solid Conductor, Die Code: BG, 5/8, 2-7/8 in Length, 600 VAC, 0.232 to 0.26 in Wire Dia, Aluminum, Orange, 4-5/64 in Dia x 2-7/8 in L
Color:
Orange
Conductor Size:
2 ACSR/2 to 1 AWG Stranded/2 AWG Solid
Conductor Type:
ACSR/Copper
Die Code:
BG, 5/8
Dimensions:
4-5/64 in Dia x 2-7/8 in L
Length:
2-7/8 in
Material:
Aluminum
Series:
PIK
Specifications:
0.232 to 0.26 in Wire Dia
Type:
Pre-Insulated
Voltage Rating:
600 VAC
- Pre-insulated nylon jacket
- Dual-rated, color coded end caps
- Anchoring rings inside jacket
- Provides protection against moisture, extended shelf life and crimpability at sub-zero temperatures
- For aluminum to copper or aluminum to aluminum
- Provides for ease of wire size identification (conforms to industry standards) and also prevents dirt and other contaminants from entering the connector prior to use
- Holds connector insert in place during installation
- Ensures reliability
Product Details
ILSCO® Compression Sleeve, Pre-Insulated, Series: PIK, ACSR/Copper Conductor, 2 ACSR/2 to 1 AWG Stranded/2 AWG Solid Conductor, Die Code: BG, 5/8, 2-7/8 in Length, 600 VAC, 0.232 to 0.26 in Wire Dia, Aluminum, Orange, 4-5/64 in Dia x 2-7/8 in L
Attributes
Color: Orange
Conductor Size: 2 ACSR/2 to 1 AWG Stranded/2 AWG Solid
Conductor Type: ACSR/Copper
Die Code: BG, 5/8
Dimensions: 4-5/64 in Dia x 2-7/8 in L
Length: 2-7/8 in
Material: Aluminum
Series: PIK
Specifications: 0.232 to 0.26 in Wire Dia
Type: Pre-Insulated
Voltage Rating: 600 VAC
Features
- Pre-insulated nylon jacket
- Dual-rated, color coded end caps
- Anchoring rings inside jacket
- Provides protection against moisture, extended shelf life and crimpability at sub-zero temperatures
- For aluminum to copper or aluminum to aluminum
- Provides for ease of wire size identification (conforms to industry standards) and also prevents dirt and other contaminants from entering the connector prior to use
- Holds connector insert in place during installation
- Ensures reliability
