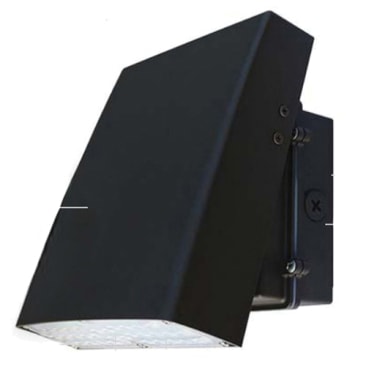

CSC AWP02-30W-40K Image 1

CSC AWP02-30W-40K WLPK 30W LWPRFL AJSTBL DIM DLC IP65 4K

MFR Part #: AWP02-30W-40K
SKU #: 1205390
Brand: CSC LED
UPC: 845599030010
CSC LED AWP02 Series AWP02-30W-40K Architectural Wall Pack, 30 W Fixture, 120-277 V, LED Lamp, Super Bright Light
10 Year
This product may be subject to ecological fees.
For building entrances, multi-use facilities, apartment buildings, institutions, schools, stairways, loading docks
cUL E482965 Listed | DLC PQ6BEWE7 Listed

CSC LED Architectural Wall Pack, AWP02 Series, 120-277 V, 30 W Fixture Wattage, LED Lamp, Super Bright Light, 3239 Lumens, 4000 K, 83.3 CRI, Non-Dimmable, 50000 hr Average Life, Aluminum Fixture, Bronze Fixture, 193 mm Overall Width, 227.8 mm Overall Height, Wall Mounting, Additional Information: 90 x 120 deg Beam, Import, -40 to 40 deg C Temperature Rating

Product Details

CSC LED Architectural Wall Pack, AWP02 Series, 120-277 V, 30 W Fixture Wattage, LED Lamp, Super Bright Light, 3239 Lumens, 4000 K, 83.3 CRI, Non-Dimmable, 50000 hr Average Life, Aluminum Fixture, Bronze Fixture, 193 mm Overall Width, 227.8 mm Overall Height, Wall Mounting, Additional Information: 90 x 120 deg Beam, Import, -40 to 40 deg C Temperature Rating

Attributes

Additional Information: 90 x 120 deg Beam, Import, -40 to 40 deg C Temperature Rating
Average Life: 50000 hr
Color Rendering Index (CRI): 83.3
Color Temperature: 4000 K
Dimmable/Non-Dimmable: Non-Dimmable
Fixture Finish: Bronze
Fixture Material: Aluminium
Fixture Wattage: 30 W
Lamp Type: LED
Light Color: Super Bright
Lumens: 3239 Lumens
Mounting Type: Wall
Overall Height: 227.8 mm
Overall Width: 193 mm
Series: AWP02 Series
Voltage Rating: 120-277 V

Features

  • Rugged cast aluminum with powder coat finish (bronze)
  • Ratcheted hinged design allows rotation for precise aim
  • 0 to 90 deg adjustable
  • Sealed waterproof driver
  • High efficiency lumiled chips
  • Universal back box for easy mounting
  • Hermetically sealed light engine
  • High grade polycarbonate optics will never yellow and delivers precise beam control and reduced glare

Resources

Specification Sheet
