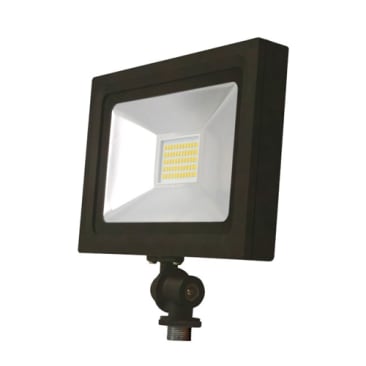

CSC FL02-10W-KN Image 1

CSC FL02-10W-KN MINI-FLD W/KNUCKL 10W 120V DLC 5K 1089LM BRZ

MFR Part #: FL02-10W-KN
SKU #: 1219112
Brand: CSC LED
UPC: 845599010715
CSC LED Streamline Series FL02-10W-KN Flood Light, 120-277 V, 10 W, LED Lamp, 1089 Lumens, 5000 K, Glass Lens
6 Month
Landscape Lighting, Architectural Floodlights, Interior Wall Washing
cULus E482965 Listed | DLC Listed

CSC LED Flood Light, Streamline Series, 120-277 V, 10 W Wattage, Rectangular Shape, LED Lamp, Glass Lens, 1089 Lumens, 35000 hr Average Life, 82.7 CRI, 5000 K, 110 deg Beam Angle, 52 mm Maximum Overall Length, IP65 Enclosure, 0.98 Power Factor, Knuckle Mounting, Aluminum, Bronze, Finish: Powder-Coated, -20 to 40 deg C, 19.5 mm L x 135 mm W x 90 mm H

Product Details

CSC LED Flood Light, Streamline Series, 120-277 V, 10 W Wattage, Rectangular Shape, LED Lamp, Glass Lens, 1089 Lumens, 35000 hr Average Life, 82.7 CRI, 5000 K, 110 deg Beam Angle, 52 mm Maximum Overall Length, IP65 Enclosure, 0.98 Power Factor, Knuckle Mounting, Aluminum, Bronze, Finish: Powder-Coated, -20 to 40 deg C, 19.5 mm L x 135 mm W x 90 mm H

Attributes

Average Life: 35000 hr
Color Rendering Index (CRI): 82.7
Color Temperature: 5000 K
Dimensions: 19.5 mm L x 135 mm W x 90 mm H
Enclosure Type: IP65
Lamp Type: LED
Lumens: 1089 Lumens
Mounting Type: Knuckle
Series: Streamline Series
Voltage Rating: 120-277 V
Beam Angle: 110 deg
Color: Bronze
Finish: Powder-Coated
Lens Material: Glass
Material: Aluminum
Maximum Overall Length: 52 mm
Power Factor: .98
Shape: Rectangular
Temperature Rating: -20 to 40 deg C
Wattage: 10 W

Features

  • Slim, sleek and lightweight
  • Anodized aluminum body
  • LM80 tested LED chips
  • Optical-grade glass lens

Resources

Instruction/Installation Manual
Specification Sheet
