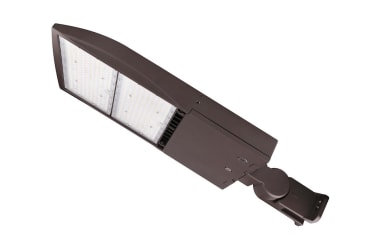

CSCLED FL04B-300W-50K-UD 300W 5000K 120-347V FLOOD LIGHT BRASS

MFR Part #: FL04B-300W-50K-UD
SKU #: 1249458
Brand: CSC LED
UPC: 845599011699
CSC LED FL04B-300W-50K-UD Concorde Series Flood/Area Light, 300 W Fixture, 120 to 347 V, Bronze Housing
10 Years
This product may be subject to ecological fees.
cUL Listed | DLC Premium Listed

CSC LED, FL04B-300W-50K-UD, Flood/Area Light, Series: Concorde Series, 120 to 347 V, 300 W Fixture, 137 Lumens/W Light Output, 50000 hrs Average Life, Natural White Light, 5000 K Color Temperature, 73 CRI, 0 to 10 V Dimmable Ballast, Polycarbonate Lens, 41344 Lumens, IP65 Enclosure, Trunnion Mounting, Die-Cast Aluminum Housing Material, Bronze Housing Finish, 330.5 mm L x 89 mm W x 748.8 mm H Dimensions

Product Details

CSC LED, FL04B-300W-50K-UD, Flood/Area Light, Series: Concorde Series, 120 to 347 V, 300 W Fixture, 137 Lumens/W Light Output, 50000 hrs Average Life, Natural White Light, 5000 K Color Temperature, 73 CRI, 0 to 10 V Dimmable Ballast, Polycarbonate Lens, 41344 Lumens, IP65 Enclosure, Trunnion Mounting, Die-Cast Aluminum Housing Material, Bronze Housing Finish, 330.5 mm L x 89 mm W x 748.8 mm H Dimensions

Attributes

Average Life: 50000 hrs
Ballast Type: 0 to 10 V Dimmable
Color Rendering Index (CRI): 73
Color Temperature: 5000 K
Dimensions: 330.5 mm L x 89 mm W x 748.8 mm H
Enclosure Type: IP65
Fixture Wattage: 300 W
Housing Finish: Bronze
Housing Material: Die-Cast Aluminum
Lens Type: Polycarbonate
Light Color: Natural White
Light Output: 137 Lumens/W
Lumens: 41344 Lumens
Mounting Type: Trunnion
Series: Concorde Series
Voltage Rating: 120 to 347 V

Features

  • FL04B Concorde series Flood Light from CSC LED Sleek, streamlined design with premium performance
  • A versatile, clean, modern appearance
  • Pressure relief respirator for expansion/contraction
  • Quick-release, hinged access cover for control compartment
  • Pre-wired for optional motion sensor
  • Removable access plate for easy field installation of a twist-lock photocell
  • Complete with trunnion

Resources

Instruction/Installation Manual
Specification Sheet
