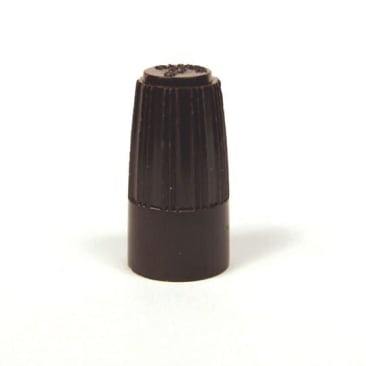

MARR 63D ACS TWIST-ON WIRE NUT FLIP-PAK (PK500/PER EA)
MFR Part #: 63D
SKU #: 1283940
Brand: MARR
UPC: 067396015087
Marrette® 63D ACS Series Twist-On Wire Connector, Fixed/Round Spring, 18 to 12 AWG Aluminum/Stranded Copper Wire, Thermoplastic Valox® Resin
CSA File No. 6591
Product Details
Attributes
Features
Resources
Marrette® Wire Connector, Twist-On, Series: ACS, Fixed/Round Spring, Aluminum/Stranded Copper Wire, 18 to 12 AWG Wire, 600 V AC, Specifications: Twist Mount, 257 deg F, Thermoplastic Valox® Resin, Dark Brown
Color:Dark Brown
Material:Thermoplastic Valox® Resin
Series:ACS
Specifications:Twist Mount
Spring Type:Fixed/Round
Temperature Rating:257 deg F
Type:Twist-On
Voltage Rating:600 V AC
Wire Size:18 to 12 AWG
Wire Type:Aluminum/Stranded Copper
- Made or Assembled in Canada
- Made of sturdy, thermoplastic valox resin 257 deg F rated
- Deep, wide throat ensures full insulation coverage
- Threaded entry helps guide large wire bundles right into the spring
- Made of a special bronze alloy and then plated with a thick coating of tin to satisfy the rigorous standards established for aluminum wire connections
- Round spring design ensures that aluminum conductors and highly stranded copper wires are not scored or severed when joined
- Approved for circuits up to 600 V, and lighting fixtures and signs up to 1000 V
- Approved for aluminum-to-aluminum, copper-to-copper, aluminum-to-copper (or highly stranded copper) connections
Product Details
Marrette® Wire Connector, Twist-On, Series: ACS, Fixed/Round Spring, Aluminum/Stranded Copper Wire, 18 to 12 AWG Wire, 600 V AC, Specifications: Twist Mount, 257 deg F, Thermoplastic Valox® Resin, Dark Brown
Attributes
Color: Dark Brown
Material: Thermoplastic Valox® Resin
Series: ACS
Specifications: Twist Mount
Spring Type: Fixed/Round
Temperature Rating: 257 deg F
Type: Twist-On
Voltage Rating: 600 V AC
Wire Size: 18 to 12 AWG
Wire Type: Aluminum/Stranded Copper
Features
- Made or Assembled in Canada
- Made of sturdy, thermoplastic valox resin 257 deg F rated
- Deep, wide throat ensures full insulation coverage
- Threaded entry helps guide large wire bundles right into the spring
- Made of a special bronze alloy and then plated with a thick coating of tin to satisfy the rigorous standards established for aluminum wire connections
- Round spring design ensures that aluminum conductors and highly stranded copper wires are not scored or severed when joined
- Approved for circuits up to 600 V, and lighting fixtures and signs up to 1000 V
- Approved for aluminum-to-aluminum, copper-to-copper, aluminum-to-copper (or highly stranded copper) connections
