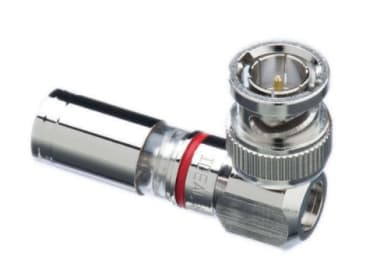

IDEAL 92-693 RG59 BNC 90DEG COMPRESSION CONNECTOR (PK15)

IDEAL® InSITE™ Compression Connector, Type BNC, 23 to 18 AWG Solid Cable, RG59 Cable, 5 MHz to 3 GHz Frequency, 75 Ohm Impedance, Brass, Nickel Plated

Connector Model: 59BNCRAIS90° for better cable routing options in cameras and headendsAccepts RG-59 coaxCenter conductor range: 23-18 AWG Solid (.023” - .040”)Dielectric diameter range: .142” - .148”Outer jacket diameter range: .230” - .250”Recommended cable prep/stripping tools: 45-605 PrepPRO; 45-321Recommended compression tools: 30-793 OmniSeal PRO XL; 33-632 Linear X3Installing one-piece compression BNC and right angle connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job.With the patented InSITE Technology feature, now standard on all IDEAL BNC and right angle (90°) compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all applications from CCTV to HD Video.The InSITE window is a 360° clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed.All IDEAL compression connectors require a ¼” x ¼” industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork – a confident connection every time.
